2024 LINCOLN NAVIGATOR SUV

Specifications & Models

COMPARE MODELS

View 2024 Lincoln Navigator Reserve model View 2024 Lincoln Navigator Reserve model
View 2024 Lincoln Navigator Reserve L model View 2024 Lincoln Navigator Reserve L model

COMPARE MODELS

NAVIGATOR RESERVE

Enhance your ride with standard Perfect Position front seats with 24-way adjustability and head-up display and standard Lincoln Co-Pilot360™ 2.0 Vision and Lincoln BlueCruise 1.0¹³³.

Search Inventory

Navigator Reserve offers two equipment collections to choose from:

RESERVE 200A

Key features such as:

• Perfect Position 24-Way Front Seats
• Heated/Ventilated First- and Second-Row Seats With Premium Leather Seating Surfaces
• 22" Bright-Machined Aluminum Wheels With Premium Painted Pockets
• Panoramic Vista Roof®
• Lincoln Co-Pilot 360™ 2.0 and Lincoln Co-Pilot 360 2.0 Vision¹⁰• Lincoln BlueCruise 1.0¹³³ with 4-year subscription
• Revel® Audio System With 14-Speakers
• Phone As A Key⁸³• Head-Up Display¹²• Standard Trailer Tow Prep Package and available Heavy-Duty Trailer Tow Package
• Available Monochromatic Package

BUILD & PRICE
RESERVE 201A

All standard features of Navigator Reserve 200A, plus:

• Perfect Position Front Seats with 30-Way Adjustability and Active Motion®
• Revel®⁸⁶ Ultima 3D Audio System with HD Radio™ Technology and 28 Speakers
• Lincoln Lit Star in Grille
• Available Second-Row Enhanced Massage Captain’s Chairs

BUILD & PRICE

VEHICLE DIMENSIONS

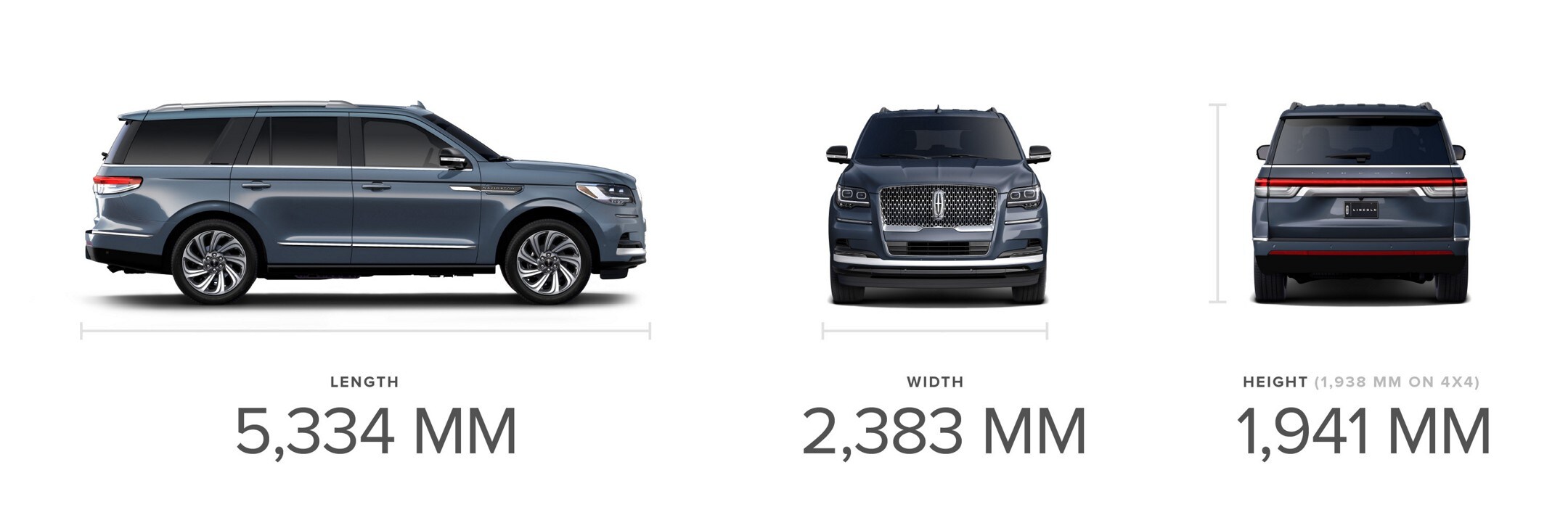

Side, front and rear views of a 2024 Lincoln Navigator Reserve model SUV in Flight Blue with visible dimensions

NAVIGATOR RESERVE HIGHLIGHTS

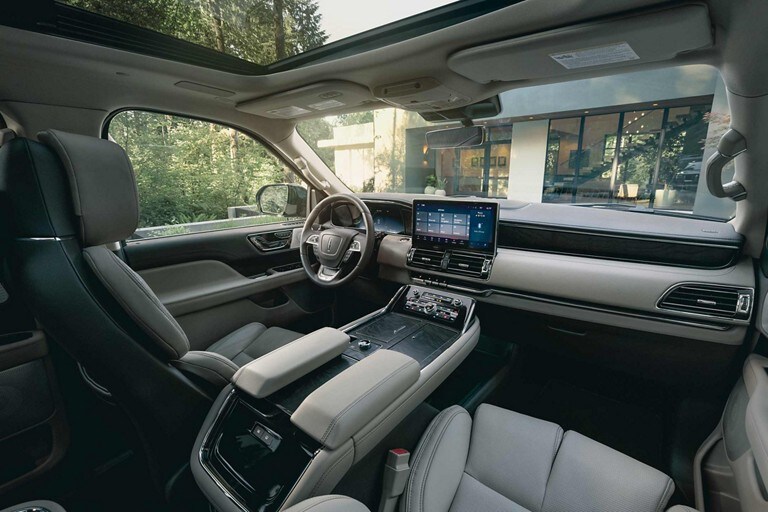

The front-row cabin of a 2024 Lincoln Navigator SUV shows off comfortable Perfect Position front seats

PERFECT POSITION SEATING

The Perfect Position front seats with available Active Motion® massage put you in control of your own comfort with their wide range of movement and standard heating and ventilation.

A woman sitting in the driver’s seat of a 2024 Lincoln Navigator SUV

LINCOLN CO-PILOT360™ 2.0 TECHNOLOGY

Enjoy an effortless journey courtesy of Lincoln Co-Pilot360™ 2.0 and Lincoln BlueCruise¹³³ 1.0 hands-free highway driving technology while keeping your eyes on the road.

Head-Up Display information is being projected above the steering wheel at night

HEAD-UP DISPLAY¹²

Select what information to project above the steering wheel to customize your display based on your journey and preferences¹².

Specifications

Highlights

Fuel Consumption and Engine Highlights	Navigator 4x4	Navigator L 4x4
Engine Type	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology

Fuel Consumption and Engine Highlights	Navigator 4x4	Navigator L 4x4
Engine Type	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology

Vehicle Highlights

	Navigator 4x4	Navigator L 4x4
Max Seating Capacity	7/8	7/8
Drive Type	Four Wheel Drive (4x4)	Four Wheel Drive (4x4)
Transmissions	10-Speed SelectShift^® Automatic Transmission with Paddle Activation	10-Speed SelectShift^® Automatic Transmission with Paddle Activation
Wheelbase	3,112 mm	3,342 mm
Maximum Towing Capacity	3,765 kg	3,674 kg
Wheel Availability	22" Bright-Machined Aluminum Wheel with Premium Painted Pockets	22" Bright-Machined Aluminum Wheel with Premium Painted Pockets
	22" 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets	22" 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets
	22" Black Aluminum Wheel	22" Black Aluminum Wheel
Warranty	Basic: 48 months/80,000 km Corrosion: 5 years/unlimited distance Powertrain: 6 years/110,000 km Safety Restraint: 5 years/100,000 km Roadside Assistance: 6 years/110,000 km	Basic: 48 months/80,000 km Corrosion: 5 years/unlimited distance Powertrain: 6 years/110,000 km Safety Restraint: 5 years/100,000 km Roadside Assistance: 6 years/110,000 km

	Navigator 4x4	Navigator L 4x4
Max Seating Capacity	7/8	7/8
Drive Type	Four Wheel Drive (4x4)	Four Wheel Drive (4x4)
Transmissions	10-Speed SelectShift^® Automatic Transmission with Paddle Activation	10-Speed SelectShift^® Automatic Transmission with Paddle Activation
Wheelbase	122.5 in	131.6 in
Maximum Towing Capacity	8,300 lbs.	8,100 lbs.
Wheel Availability	22" Bright-Machined Aluminum Wheel with Premium Painted Pockets	22" Bright-Machined Aluminum Wheel with Premium Painted Pockets
	22" 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets	22" 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets
	22" Black Aluminum Wheel	22" Black Aluminum Wheel
Warranty	Basic: 48 months/50,000 miles Corrosion: 5 years/unlimited distance Powertrain: 6 years/70,000 miles Safety Restraint: 5 years/60,000 miles Roadside Assistance: 6 years/70,000 miles	Basic: 48 months/50,000 miles Corrosion: 5 years/unlimited distance Powertrain: 6 years/70,000 miles Safety Restraint: 5 years/60,000 miles Roadside Assistance: 6 years/70,000 miles

Exterior

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(mm)	(mm)
Wheelbase	3,112	3,342
Length	5,334	5,636
Height	1,939	1,933
Body Width - Maximum	2,030	2,030
Vehicle Width - Including Outside Mirrors	2,383	2,383
Vehicle Width - with Mirrors Folded	2,124	2,124
Front Track	1,716	1,716
Rear Track	1,708	1,708
Front Overhang	971	971
Rear Overhang	1,251	1,323
Approach Angle [deg]	22.2	22.4
Departure Angle [deg]	21.9	20.7
Ramp Breakover Angle [deg]	21.1	19.8
Minimum Running Ground Clearance	244	245

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(in)	(in)
Wheelbase	122.5	131.6
Length	210.0	221.9
Height	76.3	76.1
Body Width - Maximum	79.9	79.9
Vehicle Width - Including Outside Mirrors	93.8	93.8
Vehicle Width - with Mirrors Folded	83.6	83.6
Front Track	67.6	67.6
Rear Track	67.2	67.2
Front Overhang	38.2	38.2
Rear Overhang	49.3	52.1
Approach Angle [deg]	22.2	22.4
Departure Angle [deg]	21.9	20.7
Ramp Breakover Angle [deg]	21.1	19.8
Minimum Running Ground Clearance	9.6	9.6

Interior

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(mm)	(mm)
Maximum Head Room - First-Row	1,062	1,062
Head Room - Second-Row	1,015	1,015
Head Room - Third-Row	948	950
Maximum Leg Room - First-Row	1,115	1,115
Leg Room - Second-Row	1,045	1,045
Leg Room - Second-Row (Seat Full Rearward)	1,074	1,074
Leg Room - Third-Row	917	917
Leg Room - Third-Row (Second-Row Seat Full Forward)	1,038	1,038
Hip Room - First-Row	1,571	1,571
Hip Room - Second-Row	1,565	1,565
Hip Room - Third-Row	1,305	1,305
Shoulder Room - First-Row	1,656	1,656
Shoulder Room - Second-Row	1,653	1,653
Shoulder Room - Third-Row	1,630	1,634

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(in)	(in)
Maximum Head Room - First-Row	41.8	41.8
Head Room - Second-Row	40.0	40.0
Head Room - Third-Row	37.3	37.4
Maximum Leg Room - First-Row	43.9	43.9
Leg Room - Second-Row	41.1	41.1
Leg Room - Second-Row (Seat Full Rearward)	42.3	42.3
Leg Room - Third-Row	36.1	36.1
Leg Room - Third-Row (Second-Row Seat Full Forward)	40.9	40.9
Hip Room - First-Row	61.9	61.9
Hip Room - Second-Row	61.6	61.6
Hip Room - Third-Row	51.4	51.4
Shoulder Room - First-Row	65.2	65.2
Shoulder Room - Second-Row	65.1	65.1
Shoulder Room - Third-Row	64.2	64.3

Capacities

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(L)	(L)
Passenger Volume [cu.-ft./ L]	4,869	4,873
Cargo Volume Behind First-Row [cu.-ft./ L]	2,925	3,403
Cargo Volume Behind Second-Row [cu.-ft / L]	1,627	2,077
Cargo Volume Behind Second-Row - Second-Row Seat Full Forward [cu.-ft./ L]	1,800	2,254
Cargo Volume Behind Third-Row [cu.-ft./ L]	546	972
Cargo Volume Behind Third-Row - Third-Row Seat Full Upright [cu.-ft./ L]	593	1,019
Fuel:	Navigator 4x4 (litre)	Navigator L 4x4 (litre)
Maximum Fuel Capacity	89 L	105 L

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(cu.-ft.)	(cu.-ft.)
Passenger Volume [cu.-ft./ L]	172.0	172.1
Cargo Volume Behind First-Row [cu.-ft./ L]	103.3	120.2
Cargo Volume Behind Second-Row [cu.-ft / L]	57.5	73.3
Cargo Volume Behind Second-Row - Second-Row Seat Full Forward [cu.-ft./ L]	63.6	79.6
Cargo Volume Behind Third-Row [cu.-ft./ L]	19.3	34.3
Cargo Volume Behind Third-Row - Third-Row Seat Full Upright [cu.-ft./ L]	20.9	36.0
Fuel:	Navigator 4x4 (gal)	Navigator L 4x4 (gal)
Maximum Fuel Capacity	23.6 gal	27.8 gal

Engine

Engine Specifications	Navigator 4x4	Navigator L 4x4
Engine Type	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology
Transmission Type	10-Speed SelectShift^® Automatic Transmission with Paddle Activation	10-Speed SelectShift^® Automatic Transmission with Paddle Activation
Horsepower (SAE net @ rpm)	440 @ 5,850	440 @ 5,850
Torque (lb. Ft SAE net @ rpm)	510 @ 3,000	510 @ 3,000
Compression Ratio	10.5:1	10.5:1
Fuel Delivery	Direct Injection	Direct Injection
Exhaust	Dual	Dual

Engine Specifications	Navigator 4x4	Navigator L 4x4
Engine Type	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology
Transmission Type	10-Speed SelectShift^® Automatic Transmission with Paddle Activation	10-Speed SelectShift^® Automatic Transmission with Paddle Activation
Horsepower (SAE net @ rpm)	440 @ 5,850	440 @ 5,850
Torque (lb. Ft SAE net @ rpm)	510 @ 3,000	510 @ 3,000
Compression Ratio	10.5:1	10.5:1
Fuel Delivery	Direct Injection	Direct Injection
Exhaust	Dual	Dual

Chassis

Chassis Specifications	Navigator 4x4	Navigator L 4x4
Front Suspension	Independent Short- and Long-Arm (SLA) with Coil-Over Semi-Active Shocks and Stabilizer Bar	Independent Short- and Long-Arm (SLA) with Coil-Over Semi-Active Shocks and Stabilizer Bar
Rear Suspension	Independent Multi-Link with Coil-Over Semi-Active Shocks and Stabilizer Bar	Independent Multi-Link with Coil-Over Semi-Active Shocks and Stabilizer Bar
Front and Rear Brakes	Power Four-Wheel Disc Anti-Lock Brake System (ABS)	Power Four-Wheel Disc Anti-Lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)	Electric Power-Assisted Steering (EPAS)

Chassis Specifications	Navigator 4x4	Navigator L 4x4
Front Suspension	Independent Short- and Long-Arm (SLA) with Coil-Over Semi-Active Shocks and Stabilizer Bar	Independent Short- and Long-Arm (SLA) with Coil-Over Semi-Active Shocks and Stabilizer Bar
Rear Suspension	Independent Multi-Link with Coil-Over Semi-Active Shocks and Stabilizer Bar	Independent Multi-Link with Coil-Over Semi-Active Shocks and Stabilizer Bar
Front and Rear Brakes	Power Four-Wheel Disc Anti-Lock Brake System (ABS)	Power Four-Wheel Disc Anti-Lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)	Electric Power-Assisted Steering (EPAS)

Towing

	Navigator 4x4	Navigator L 4x4
Maximum Towing Capacity	3,765 kg*	3,674 kg*
	*When properly equipped with optional Heavy Duty Trailer Tow Package.	*When properly equipped with optional Heavy Duty Trailer Tow Package.

	Navigator 4x4	Navigator L 4x4
Maximum Towing Capacity	8,300 lbs..*	8,100 lbs..*
	*When properly equipped with optional Heavy Duty Trailer Tow Package.	*When properly equipped with optional Heavy Duty Trailer Tow Package.

Power and Handling

Handling

Standard

AdvanceTrac® with RSC® (Roll Stability Control™)
Trailer Tow Prep Package
Lincoln Drive Modes Open image overlay for Lincoln Drive Modes
Auto Hold
Electric Power-Assisted Steering (EPAS)
Adaptive Suspension with Road Preview Open image overlay for Adaptive Suspension with Road Preview
Side Wind Stabilization

Optional

Pro-Trailer Backup Assist™ 2.0
Trailer Reverse Guidance
Two-Speed Transfer Case (includes Slow Climb drive mode)
Trailer Brake Controller

Power

Standard

Twin-Turbocharged 3.5L V6 Engine with Auto Start-Stop Technology Open image overlay for Twin-Turbocharged 3.5L V6 Engine with Auto Start-Stop Technology
Axle- Non-Limited Slip 3.73 (1-speed transfer case)
10-Speed SelectShift® Automatic Transmission with Paddle Activation Open image overlay for 10-Speed SelectShift® Automatic Transmission with Paddle Activation
Battery - 78 Amp
4x4 Four-Wheel Drive Open image overlay for 4x4 Four-Wheel Drive
Transmission Oil Cooler

Optional

Engine Block Heater

Wheels & Tires

Standard

22" Bright-Machined Aluminum Wheel with Premium Painted Pockets
18" Spare Wheel

Optional

22" 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black-Painted Pockets
22" Black Aluminum Wheel

Interior Features

Climate

Standard

Tri-Zone Electronic Automatic Temperature Control with Rear Auxiliary Climate Controls and Vents

Comfort and Convenience

Standard

Genuine Wood Trim: Centre Console and Door Panels
Heated, Leather-Wrapped Steering Wheel with Audio, and Cruise Controls
Coat Hooks- (2) 2nd-Row, (2) 3rd-Row
Carpeted 1st- and 2nd-Row floor mats
Cup/ Bottle Holders
Instrument Cluster - 12" Configurable LCD Display
Ambient Lighting
Blind Spot Information System with Cross-Traffic Alert and Trailer Coverage
Rear Cross-Traffic Braking
Reading Lamps, First-Row
Frameless, Auto-Dimming Rearview Mirror
Power-Adjustable Pedals with Memory
Power Tilt/Telescoping Steering Column with Memory
Front Visors with Illuminated Vanity Mirrors
Power Windows with One-Touch-Up/Down and Global Open Feature
Fixed Rear Quarter Glass
Power Liftgate
Power Door Locks with Autolock
Universal Garage Door Opener
Rear Window Defroster with Washer and Intermittent Wiper
Overhead Console with Sunglasses Holder and Conversation Mirror
Front Console with Winged Armrests and Storage
Glove Compartment - Lockable
Remote Start System
Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Speed Sign Recognition
Illuminated Front Door-Sill Scuff Plates
Piano Key Shifter Open image overlay for Piano Key Shifter
Intelligent Access with Push-Button Start
Enhanced Active Noise Control
110V/150W AC Power Outlet
Powerpoints – (4) 12V, (5) Smart Charging USB Open image overlay for Powerpoints – (4) 12V, (5) Smart Charging USB
Rain-Sensing Front Wipers
Head-Up Display Open image overlay for Head-Up Display
Active Park Assist 2.0 Open image overlay for Active Park Assist 2.0
Wireless Charging Pad Open image overlay for Wireless Charging Pad
Lane Keeping System includes Lane Keeping Aid, Lane Keeping Alert, Driver Alert System and Road Edge Detection
Hill Start Assist
Hill Descent Control™
Forward/Side/Rear Parking Sensors
Personal Profiles Open image overlay for Personal Profiles
Lincoln Connect™ Open image overlay for Lincoln Connect™
Lincoln Way™App Open image overlay for Lincoln Way™App
Lincoln Co-Pilot360™ 2.0 Open image overlay for Lincoln Co-Pilot360™ 2.0
Lincoln Co-Pilot360™ 2.0 Vision
Reverse Brake Assist
Lincoln BlueCruise 1.0¹³³ with 4-year subscription
Adaptive High-Beam Headlamps
Pre-Collision Assist with Automatic Emergency Braking includes Pedestrian Detection, Intersection Assist, Distance Indication and Alert, Post Collision Braking, Forward Collision Warning and Dynamic Brake Support
Phone As A Key
Cabin Particulate Air Filter

Optional

Lincoln Co-Pilot360™ 2.0 Towing

Entertainment System

Standard

SYNC® 4 Open image overlay for SYNC® 4
13.2" LCD Capacitive Touchscreen in Centre Stack with Swipe Capability Open image overlay for 13.2" LCD Capacitive Touchscreen in Centre Stack with Swipe Capability
Connected Navigation System (1-Year of Connected Service) with Pinch-to-Zoom
Revel® Audio System with HD Radio™ Technology and 14 Speakers
SiriusXM® with 360L (90-Day Trial of Connected Service)
Alexa Built-In (3 Year Trial)

Optional

Revel® Ultima 3D Audio System with HD Radio™ Technology and 28 Speakers Open image overlay for Revel® Ultima 3D Audio System with HD Radio™ Technology and 28 Speakers

Interior Accessories

Optional

All-Weather Floor Liners - First- and Second-Rows

Seating

Standard

Premium Leather Seating Surfaces for First- and Second-Rows
Second-Row PowerFold® Heated/Ventilated Captain Chairs - 40/Pass-Through/40 Seating
Third-Row 60/40 PowerFold^® Split Bench Seat with Power Recline
Perfect Position Front Seats with 24-way Adjustability
Heated and Ventilated Front Seats
Driver and Front Passenger Seat Memory Feature

Optional

Second-Row Full Console with Rear Seat Command and Control including 5.8" LCD and Multimedia Audio Controls
Second-Row Enhanced Massage Captain Chairs with Floor Console
Second-Row Enhanced Massage Captain Chairs without Floor Console
Perfect Position 30-way front seats with Active Motion® functionality including power thigh extenders and head restraints Open image overlay for Perfect Position 30-way front seats with Active Motion® functionality including power thigh extenders and head restraints
Second-Row Heated/Ventilated Outboard 40/20/40 Split Bench with PowerFold®

Exterior Features

Appearance

Standard

Chrome Roof Rack Side Rails
Illuminated Power-Deployable Running Boards Open image overlay for Illuminated Power-Deployable Running Boards
Door/Handles - Body Colour with Chrome Insert
Bright Belt Moulding
Dual Exhaust System with Bright Tips
Daytime Running Lamps - LED
Fog Lamps - LED
Lincoln Signature Lighting - LED
Adaptive Pixel Projector Headlamps Open image overlay for Adaptive Pixel Projector Headlamps
Glare-Free Lighting
Auto Lamp (Automatic On/Off Headlamps)
Power-Adjustable, Autofold, Heated Sideview Mirrors with Integrated LED Turn Signals Indicators, Memory and Driver's Side Auto-Dimming Feature Open image overlay for Power-Adjustable, Autofold, Heated Sideview Mirrors with Integrated LED Turn Signals Indicators, Memory and Driver's Side Auto-Dimming Feature
Lincoln Signature Grille with Bright Chrome Surround
Active Grille Shutters
Tail Lamps and Backup Lamps - LED
Lincoln Embrace Open image overlay for Lincoln Embrace

Optional

Front Tow Hooks
First- and Second-Row Illuminated Safety Belt Buckles
Illuminated Lincoln Star in Grille Open image overlay for Illuminated Lincoln Star in Grille

Protection

Standard

Easy Fuel® Capless Fuel Filler

Window & Glass

Standard

Acoustic Laminated Side Door Glass
Privacy Glass for Rear Door, Quarter and Liftgate Windows
Panoramic Vista Roof® Open image overlay for Panoramic Vista Roof®

Safety

Standard

Four-Wheel Disc Anti-Lock Brake System (ABS)
Dual-Stage Front Airbags Open image overlay for Dual-Stage Front Airbags
Side Impact Airbags - Front-Row Seats
Safety Canopy® System with Side Curtain Airbags and Roll Over Sensor
Belt-Minder® Open image overlay for Belt-Minder®
Child-Safety Rear Door Locks
Front Crash Severity Sensor
LATCH (Lower Anchors and Tether Anchors for Children)
SOS Post-Crash Alert System™
Personal Safety System™
Individual Tire Pressure Monitoring System (excludes spare)
360-Degree Camera with Rear Camera Washer Open image overlay for 360-Degree Camera with Rear Camera Washer

Security

Standard

SecuriCode™ Keyless Entry Keypad
Remote Keyless Entry System Open image overlay for Remote Keyless Entry System
Battery Saver
Enhanced Security System includes Intrusion and Inclination Sensors, Passive Anti-Theft and Perimeter Alarm
MyKey®
Electric Parking Brake

Packages

Search for Nearby Dealers

Need a dealer for specific services? Try our advanced search

MORE SHOPPING TOOLS

PAYMENT TOOLS

LINCOLN BENEFITS

Register or sign in for a more personalized experience.

LINCOLN SERVICES

Welcome back, {firstName}.

LINCOLN SERVICES

2024 LINCOLN NAVIGATOR SUV

Specifications & Models

NAVIGATOR RESERVE

RESERVE 200A

RESERVE 201A

VEHICLE DIMENSIONS

NAVIGATOR RESERVE HIGHLIGHTS

PERFECT POSITION SEATING

LINCOLN CO-PILOT360™ 2.0 TECHNOLOGY

HEAD-UP DISPLAY12

Specifications

Highlights

Vehicle Highlights

Exterior

Interior

Capacities

Engine

Chassis

Towing

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment System

Standard

Optional

Interior Accessories

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Window & Glass

Standard

Safety

Safety

Standard

Security

Standard

Packages

Packages

Optional

Free Standing Packages & Options

Optional

Build & Price

Search Inventory

Find a Dealer

Search for Nearby Dealers

HEAD-UP DISPLAY¹²
