2023 LINCOLN AVIATOR® SUV

Specifications & Models

Some models, trims and features may not be available. Please contact your local Lincoln Retailer for updates and assistance.

COMPARE MODELS

View 2023 Lincoln Aviator Reserve model View 2023 Lincoln Aviator Reserve model
View 2023 Lincoln Aviator Grand Touring model View 2023 Lincoln Aviator Grand Touring model

COMPARE MODELS

Aviator Reserve

This large, 3-row, luxury SUV offers an impressive list of standard features, including Panoramic Vista Roof,® Hands-Free Power Liftgate,¹⁶ Wireless Charging Pad,⁵¹ 1st- and 2nd-Row Premium Leather Seating Surfaces and more.

BUILD YOUR CUSTOM ORDER

U.S. Model Shown.

AVIATOR RESERVE EQUIPMENT COLLECTIONS

RESERVE 200A
Key Features:
- Heated and Ventilated 1st- and 2nd-Row Seats with Premium Leather Seating Surfaces
- Panoramic Vista Roof®
- 20" Bright-Machined Aluminum Wheels with Magnetic-Painted Pockets
- Wireless Charging Pad⁵¹
- Elements Package Plus
- Available Class IV Trailer Tow Package
- Available Lincoln Co-Pilot360™ 1.5 Plus¹⁰
- Available Jet Appearance Package
BUILD & PRICE
RESERVE 201A
All standard features of Aviator Reserve 200A plus:
- Head-Up Display¹²⁶
- Phone As A Key⁸³
- Luxury Package (Perfect Position 30-Way Seats and Revel® Ultima 3D Audio System⁸⁶)
- Lincoln Co-Pilot360™ 1.5 Plus¹⁰
- Available 22" Bright-Machined Aluminum Wheels with Magnetic-Painted Pockets
- Available Dynamic Handling Package
- Available Illumination Package
- Available Jet Appearance Package
BUILD & PRICE

AVIATOR® RESERVE DIMENSIONS

2023 Lincoln Aviator® and its dimensions

AVIATOR RESERVE HIGHLIGHTS

A 2023 Lincoln Aviator® being driven on a winding road

LINCOLN CO-PILOT360™ 1.5 PLUS

The Lincoln Aviator Reserve model offers optional Lincoln Co-Pilot360™ 1.5 Plus,¹⁰ which builds upon Lincoln Co-Pilot360 1.5.

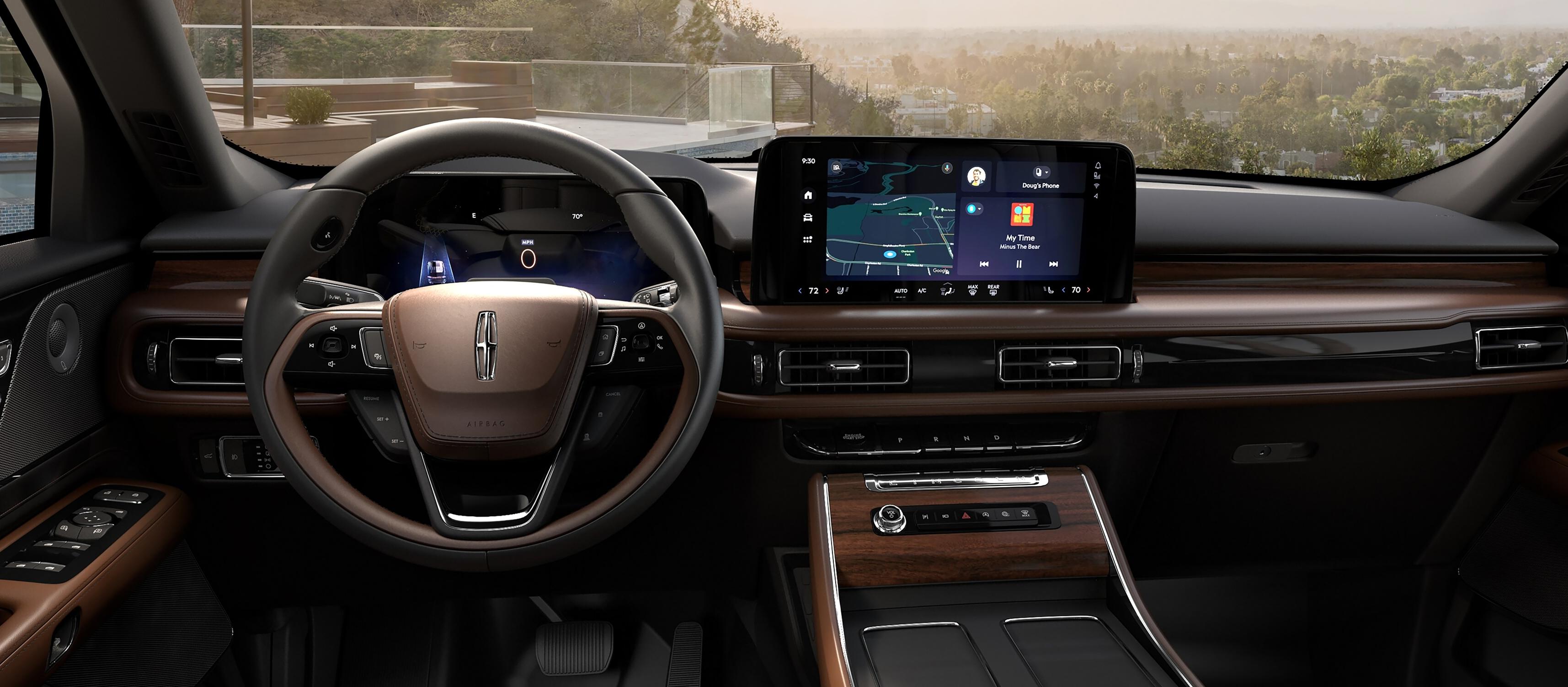

The interior of a 2023 Lincoln Aviator® is shown from the perspective of the driver

ELEMENTS PACKAGE PLUS

Reserve model includes the Elements Package Plus that adds auto heated/ventilated driver and passenger seats, heated/ventilated second-row outboard seats, heated steering wheel, and heated VisioBlade™ wipers.

2023 Lincoln Aviator® equipped with the Class 4 Trailer Tow Package

CLASS IV TRAILER TOW PACKAGE

The available Trailer Tow Package, featuring Trailer Sway Control¹⁹ and Blind Spot Information System with Trailer Coverage,¹⁰ turns heavy tasks into light work.

Specifications

Highlights

ENGINE AND FUEL ECONOMY	Aviator Reserve	Aviator Grand Touring
Engine Type	Twin-Turbocharged 3.0L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.0L V6 Grand Touring Hybrid
VEHICLE HIGHLIGHTS
Max Seating Capacity	7	7
Drive Type	AWD	AWD
Transmissions	10-Speed SelectShift® Automatic Transmission with Paddle Activation	10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation
Wheelbase	3,025 mm	3,025 mm
Wheels Available	20" Bright-Machined Aluminum with Magnetic-Painted Pockets	21" Bright-Machined Aluminum with Dark Alloy-Painted Pockets
	22" Bright-Machined Aluminum with Magnetic-Painted Pockets
	22" Black Aluminum
Warranty	Basic: 4 years/80,000 km	Basic: 4 years/80,000 km
	Powertrain: 6 years/110,000 km	Powertrain: 6 years/110,000 km
	Safety Restraint System: 5 years/100,000 km	Safety Restraint System: 5 years/100,000 km
	Corrosion (Perforation Only) 5 years/Unlimited km	Corrosion (Perforation Only) 5 years/Unlimited km
	Hybrid Unique Component: 8 years/160,000 km	Hybrid Unique Component: 8 years/160,000 km
	Roadside Assistance: 6 years/110,000 km	Roadside Assistance: 6 years/110,000 km

ENGINE AND FUEL ECONOMY	Aviator Reserve	Aviator Grand Touring
Engine Type	Twin-Turbocharged 3.0L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.0L V6 Grand Touring Hybrid
VEHICLE HIGHLIGHTS
Max Seating Capacity	7	7
Drive Type	AWD	AWD
Transmissions	10-Speed SelectShift® Automatic Transmission with Paddle Activation	10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation
Wheelbase	119.1 in.	119.1 in.
Wheels Available	20" Bright-Machined Aluminum with Magnetic-Painted Pockets	21" Bright-Machined Aluminum with Dark Alloy-Painted Pockets
	22" Bright-Machined Aluminum with Magnetic-Painted Pockets
	22" Black Aluminum
Warranty	Basic: 4 years/50,000 miles	Basic: 4 years/50,000 miles
	Powertrain: 6 years/70,000 miles	Powertrain: 6 years/70,000 miles
	Safety Restraint System: 5 years/60,000 miles	Safety Restraint System: 5 years/60,000 miles
	Corrosion (Perforation Only) 5 years/Unlimited miles	Corrosion (Perforation Only) 5 years/Unlimited miles
	Hybrid Unique Component: 8 years/100,000 miles	Hybrid Unique Component: 8 years/100,000 miles
	Roadside Assistance: 6 years/70,000 miles	Roadside Assistance: 6 years/70,000 miles

Exterior

Exterior Dimensions	Aviator Reserve	Aviator Grand Touring
	mm	mm
Wheelbase	3,025	3,025
Length	5,063	5,063
Height	1,758	1,758
Width - Excluding Mirrors	2,022	2,022
Width - Including Mirrors	2,284	2,284
Width - Mirrors Folded	2,091	2,091
Front Track	1,700	1,700
Rear Track	1,700	1,700

Exterior Dimensions	Aviator Reserve	Aviator Grand Touring
	in.	in.
Wheelbase	119.1	119.1
Length	199.3	199.3
Height	69.2	69.2
Width - Excluding Mirrors	79.6	79.6
Width - Including Mirrors	89.9	89.9
Width - Mirrors Folded	82.3	82.3
Front Track	66.9	66.9
Rear Track	66.9	66.9

Interior

Interior Dimensions	Aviator Reserve	Aviator Grand Touring
	mm	mm
Max Head Room - Front	1,021	1,021
Head Room - Middle	975	975
Head Room - Rear	937	937
Max Leg Room - Front	1,093	1,093
Leg Room - Middle	990	990
Leg Room - Rear	741	741
Hip Room - Front	1,485	1,485
Hip Room - Middle	1,481	1,481
Hip Room - Rear	1,038	1,038
Shoulder Room - Front	1,563	1,563
Shoulder Room - Middle	1,557	1,557
Shoulder Room - Rear	1,372	1,372

Interior Dimensions	Aviator Reserve	Aviator Grand Touring
	in.	in.
Max Head Room - Front	40.2	40.2
Head Room - Middle	38.4	38.4
Head Room - Rear	36.9	36.9
Max Leg Room - Front	43.0	43.0
Leg Room - Middle	39.0	39.0
Leg Room - Rear	29.2	29.2
Hip Room - Front	58.5	58.5
Hip Room - Middle	58.3	58.3
Hip Room - Rear	40.9	40.9
Shoulder Room - Front	61.5	61.5
Shoulder Room - Middle	61.3	61.3
Shoulder Room - Rear	54.0	54.0

Capacities

CAPACITIES	Aviator Reserve	Aviator Grand Touring
Maximum Seating Capacity	7	7
Standard Seating Capacity	6	6
	L	L
	(unless otherwise noted)	(unless otherwise noted)
Passenger Volume	4,097	3,980
Cargo Volume Behind First Row	2,201	2,200
Cargo Volume Behind Second Row	1,184	1,183
Cargo Volume Behind Third Row	519	519
Fuel Capacity	76.5	68.1
Base Curb Weight	2,205 kg	2,573 kg

CAPACITIES	Aviator Reserve	Aviator Grand Touring
Maximum Seating Capacity	7	7
Standard Seating Capacity	6	6
	cu. ft.	cu. ft.
	(unless otherwise noted)	(unless otherwise noted)
Passenger Volume	144.7	140.6
Cargo Volume Behind First Row	77.7	77.7
Cargo Volume Behind Second Row	41.8	41.8
Cargo Volume Behind Third Row	18.3	18.3
Fuel Capacity	20.2 gal.	18.0 gal.
Base Curb Weight	4,862 lbs.	5,673 lbs.

Engine

POWERTRAIN	Aviator Reserve	Aviator Grand Touring
Drive type	AWD	AWD
Engine type	Twin-Turbocharged 3.0L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.0L V6 Grand Touring Hybrid
Transmission	10-Speed SelectShift® Automatic Transmission with Paddle Activation	10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation
Final Drive Ratio	3.58	3.31
Horsepower (SAE net @ rpm)	400 @ 5,500*	494 @ 5,500**
Torque (lb.-ft. @ rpm)	415 @ 3,000*	630 @ 2,250**
Compression Ratio	9.5:1	9.5:1
Valve Lifters	Roller Finger Follower	Roller Finger Follower
Fuel Delivery	High-Pressure Direct Injection	High-Pressure Direct Injection
Exhaust	True Dual Exhaust System with Quad Chrome Integrated Tips	True Dual Exhaust System with Quad Chrome Integrated Tips
Cylinder Head Material	Cast Aluminum	Cast Aluminum
*Horsepower and Torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
**Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary.

POWERTRAIN	Aviator Reserve	Aviator Grand Touring
Drive type	AWD	AWD
Engine type	Twin-Turbocharged 3.0L V6 with Auto Start-Stop Technology	Twin-Turbocharged 3.0L V6 Grand Touring Hybrid
Transmission	10-Speed SelectShift® Automatic Transmission with Paddle Activation	10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation
Final Drive Ratio	3.58	3.31
Horsepower (SAE net @ rpm)	400 @ 5,500*	494 @ 5,500**
Torque (lb.-ft. @ rpm)	415 @ 3,000*	630 @ 2,250**
Compression Ratio	9.5:1	9.5:1
Valve Lifters	Roller Finger Follower	Roller Finger Follower
Fuel Delivery	High-Pressure Direct Injection	High-Pressure Direct Injection
Exhaust	True Dual Exhaust System with Quad Chrome Integrated Tips	True Dual Exhaust System with Quad Chrome Integrated Tips
Cylinder Head Material	Cast Aluminum	Cast Aluminum
*Horsepower and Torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
**Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary.

Chassis

CHASSIS	Aviator Reserve	Aviator Grand Touring
Front Suspension	Short Long Arm (SLA), Double Ball Joint Front Adaptive Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs.	Short Long Arm (SLA), Double Ball Joint Front Adaptive Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs.
Front Shocks	Gas-Pressurized, Hydraulic, Monotube Shocks.	Gas-Pressurized, Hydraulic, Monotube Shocks.
Rear Suspension	Integral Link Independent Rear Adaptive Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs.	Integral Link Independent Rear Adaptive Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs.
Rear Shocks	Gas-Pressurized, Hydraulic, Monotube Shocks. Adaptive Suspension.	Gas-Pressurized, Hydraulic, Monotube Shocks.
Brakes	Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).

CHASSIS	Aviator Reserve	Aviator Grand Touring
Front Suspension	Short Long Arm (SLA), Double Ball Joint Front Adaptive Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs.	Short Long Arm (SLA), Double Ball Joint Front Adaptive Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs.
Front Shocks	Gas-Pressurized, Hydraulic, Monotube Shocks.	Gas-Pressurized, Hydraulic, Monotube Shocks.
Rear Suspension	Integral Link Independent Rear Adaptive Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs.	Integral Link Independent Rear Adaptive Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs.
Rear Shocks	Gas-Pressurized, Hydraulic, Monotube Shocks. Adaptive Suspension.	Gas-Pressurized, Hydraulic, Monotube Shocks.
Brakes	Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).

Power and Handling

Handling

Standard

Adaptive Suspension
Auto Hold
Lane Keeping System
Electric Power-Assisted Steering (EPAS)
4-Wheel Disc Anti-Lock Brake System (ABS)
Traction Control
Post Impact Braking
Lincoln Drive Modes with Cluster Mode Indication Open image overlay for Lincoln Drive Modes with Cluster Mode Indication

Optional

Air Glide Suspension with Dynamic Lower Entry
Evasive Steering Assist
Reverse Brake Assist

Power

Standard

Intelligent All-Wheel Drive (AWD) Open image overlay for Intelligent All-Wheel Drive (AWD)
Hill Start Assist
Twin-Turbocharged 3.0L V6 Engine with Auto Start-Stop Technology
Active Grille Shutters
Engine Block Heater
10-Speed SelectShift® Automatic Transmission with Paddle Activation

Interior Features

Comfort and Convenience

Standard

AdvanceTrac® with Roll Stability Control™
Ambient Lighting
Frameless Interior Rearview Mirror with Auto-Dimming Feature
Blind Spot Information System
Carpeted First- and Second-Row Floor Mats
Dual-Illuminated Visor Vanity Mirrors
Quad-Zone Electronic Automatic Temperature Controls
Front Centre Floor Console with Armrest, Deep Storage Bin, (2) Cupholders and Powerpoints
Heated Steering Wheel
Lockable Glovebox
10.1" LCD Touchscreen Centre Stack Display
Intelligent Access with Push-Button Start
Rain-Sensing Windshield Wipers with Heated VisioBlade™ Wipers
Leather-Wrapped Steering Wheel with Cruise, Redundant Audio, Climate and Media Controls
Power Tilt/Telescoping Steering Column with Memory Feature
Overhead Console with Sunglasses Holder
Cabin Particulate and Odour Filter
Remote Start System
Universal Garage Door Opener
Panoramic Vista Roof® with Power Sunshade
Active Noise Control
Piano Key Shifter
Forward Parking Sensors
Reverse Parking Sensors
Lincoln Embrace
Electric Parking Brake
Cross Traffic Alert with Braking

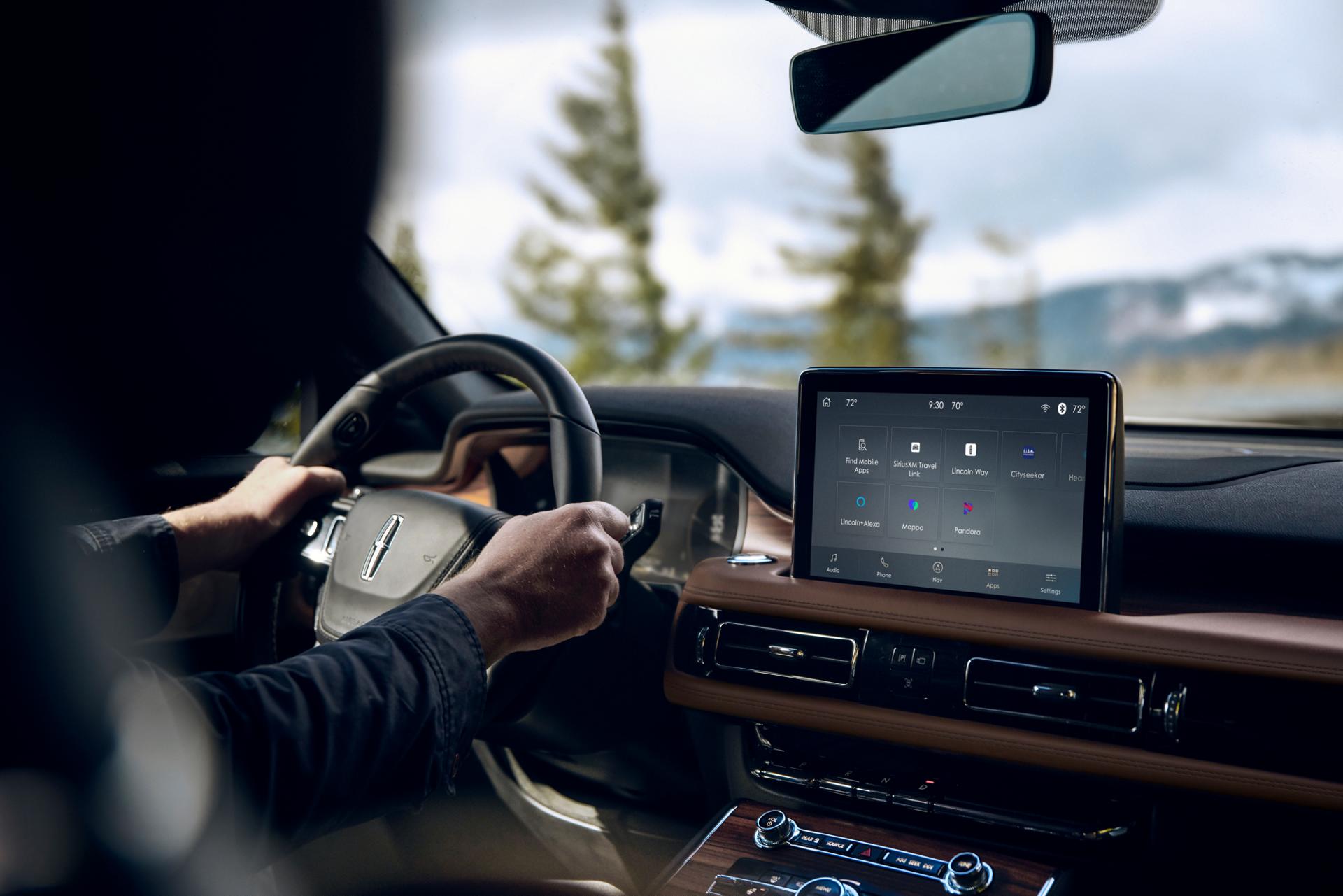

360-Degree Camera
Wireless Charging Pad⁵¹ Open image overlay for Wireless Charging Pad⁵¹
110V/150W AC Power Outlet

Optional

Phone As A Key⁸³ Open image overlay for Phone As A Key⁸³
Intelligent Adaptive Cruise Control includes Lane Centering Assist, Stop-and-Go and Speed Sign Recognition
Active Park Assist 2.0
Head-Up Display¹²⁶ Open image overlay for Head-Up Display¹²⁶
Manual Rear-Door Sun-Shades

Entertainment Systems

Standard

Smart Charging USB Ports (4)
Lincoln Connect™¹¹² 4G LTE Embedded Modem with Wi-Fi Hotspot Capability⁹⁹ Open image overlay for Lincoln Connect™¹¹² 4G LTE Embedded Modem with Wi-Fi Hotspot Capability⁹⁹
Revel® Audio System with 14-speakers and HD Radio™ Technology
SiriusXM™
SYNC® 3
Voice-Activated Navigation with SiriusXM Traffic and Travel Link®

Optional

Revel® Ultima 3D Audio System with 28-Speakers and HD Radio™ Technology Open image overlay for Revel® Ultima 3D Audio System with 28-Speakers and HD Radio™ Technology
Lincoln Play

Seating

Standard

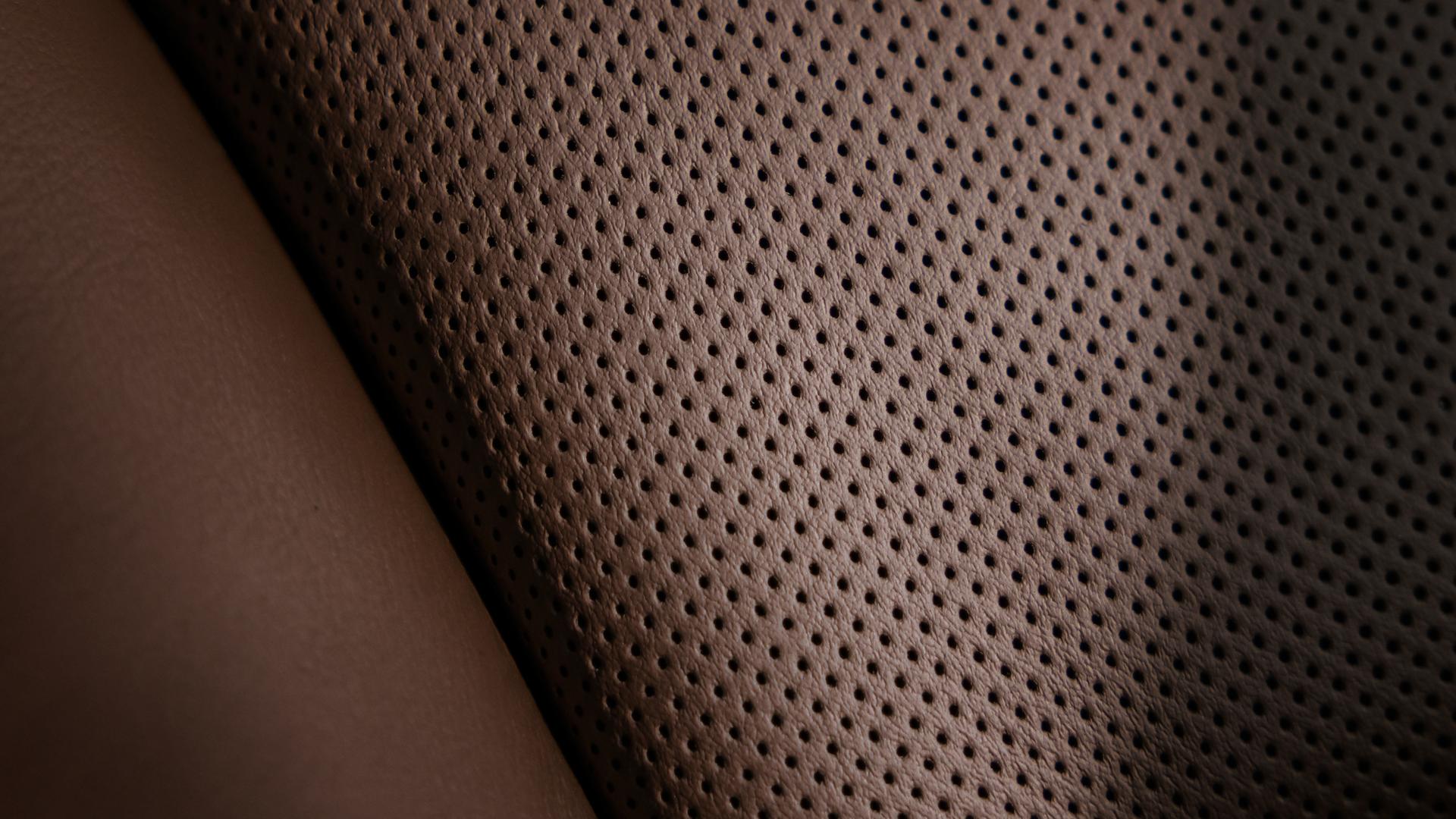

Bridge of Weir Deepsoft™ Leather Seating Surfaces for 1st- and 2nd-Row Seats
Heated and Ventilated Front Seats
Heated and Ventilated 2nd-Row Outboard Seats
Comfort Front Seats with 10-Way Driver and 8-Way Passenger Power Adjustability, Power Lumbar and Driver-Side Memory
2nd-Row 40/Mini Console/40 Dual-Captain Chairs with Power Tip-and-Slide Release
3rd-Row 50/50 PowerFold® Split-Bench Seat

Optional

Perfect Position Front Seats with 30-Way Power Adjustability Including Power Thigh Extenders and Head Restraints with Active Motion® Massage Functionality Open image overlay for Perfect Position Front Seats with 30-Way Power Adjustability Including Power Thigh Extenders and Head Restraints with Active Motion® Massage Functionality
2nd-Row 35/30/35 Bench Seat with Power Tip-and-Slide Release and Manual Fold
2nd-Row Full Console with Rear Seat Command and Control Including Rear Vista Roof® Sun Shade Control

Interior Accessories

Optional

All-Weather Floor Mat Liners (removes carpeted mats)
All-Weather Floor Mat Liners (includes carpeted mats)
Cargo Area Cover
All-Weather Floor Mats Third-Row (requires second-row Captain's Chairs)
All-Weather Floor Mats Third-Row (requires second-row Bench Seat)
Cargo Area Protector
Console Vault
Cooler Bag
Exposed Locking Lug Nut Kit
First-Aid Kit
Hidden Locking Lug Nut Kit
Large Pop-Up Organizer
Roadside Assistance Kit
Standard Pop-Up Organizer

Exterior Features

Appearance

Standard

20" Bright-Machined Aluminum Wheels with Magnetic-Painted Pockets
Chrome Upper Grille Mesh
Medium Dark Platinum Wheel Lip and Rocker Mouldings
Full LED Headlamps with Autolamp Feature
Auto High-Beam Headlamps
Wiper-Activated Headlamps
Welcome Mat Open image overlay for Welcome Mat
Light Touch Door Handles, Colour-Keyed Open image overlay for Light Touch Door Handles, Colour-Keyed
Quad-Chrome Exhaust Tips
Easy Fuel® Capless Fuel Filler
Hands-Free Power Liftgate
Power-Adjustable, Autofold, Heated Sideview Mirrors with LED Turn Signal Indicators, Memory Feature and Auto-Dimming Driver's Side
Roof Rack Aluminum Side Rails
Rear-Window Defroster with Top Mounted Wiper and Washer

Optional

22" Bright-Machined Aluminum Wheels with Magnetic-Painted Pockets
22" Black Aluminum Wheels
Illuminated Lincoln Star in Grille
Colour-Keyed Wheel Lip and Rocker Mouldings
Adaptive Pixel LED Headlamps Open image overlay for Adaptive Pixel LED Headlamps
LED Fog Lamps
Lincoln Dynamic Signature Lighting

Windows & Glass

Standard

Power Door Windows with One-Touch Up/Down Feature and Global Open/Close
Acoustic-Laminated First-Row Glass
Privacy Glass on Rear Doors, Quarters and Liftgate Glass

Packages

Free Standing Packages & Options

Standard

Elements Package Plus Open image overlay for Elements Package Plus

Optional

Luxury Package Open image overlay for Luxury Package
Dynamic Handling Package Open image overlay for Dynamic Handling Package
Illumination Package Open image overlay for Illumination Package
Lincoln Co-Pilot360™ 1.5 Plus Open image overlay for Lincoln Co-Pilot360™ 1.5 Plus
Trailer Tow Package (Class IV) with Trailer Sway Control Open image overlay for Trailer Tow Package (Class IV) with Trailer Sway Control
Linear Brushed Aluminum Appliqué
Pristine White Metallic Tri-Coat Paint (Extra Cost Colour)
Flight Blue Metallic Clearcoat Paint (Extra Cost Colour)
Jewel Sandstone Premium Colourant Paint (Extra Cost Colour)
Ceramic Pearl Metallic Tri-Coat Paint (Extra Cost Colour)
Diamond Red Metallic Tinted Clearcoat Paint (Extra Cost Colour)
Asher Grey Metallic Clearcoat Paint (Extra Cost Colour)
Gilded Green Metallic Clearcoat Paint (Extra Cost Colour)

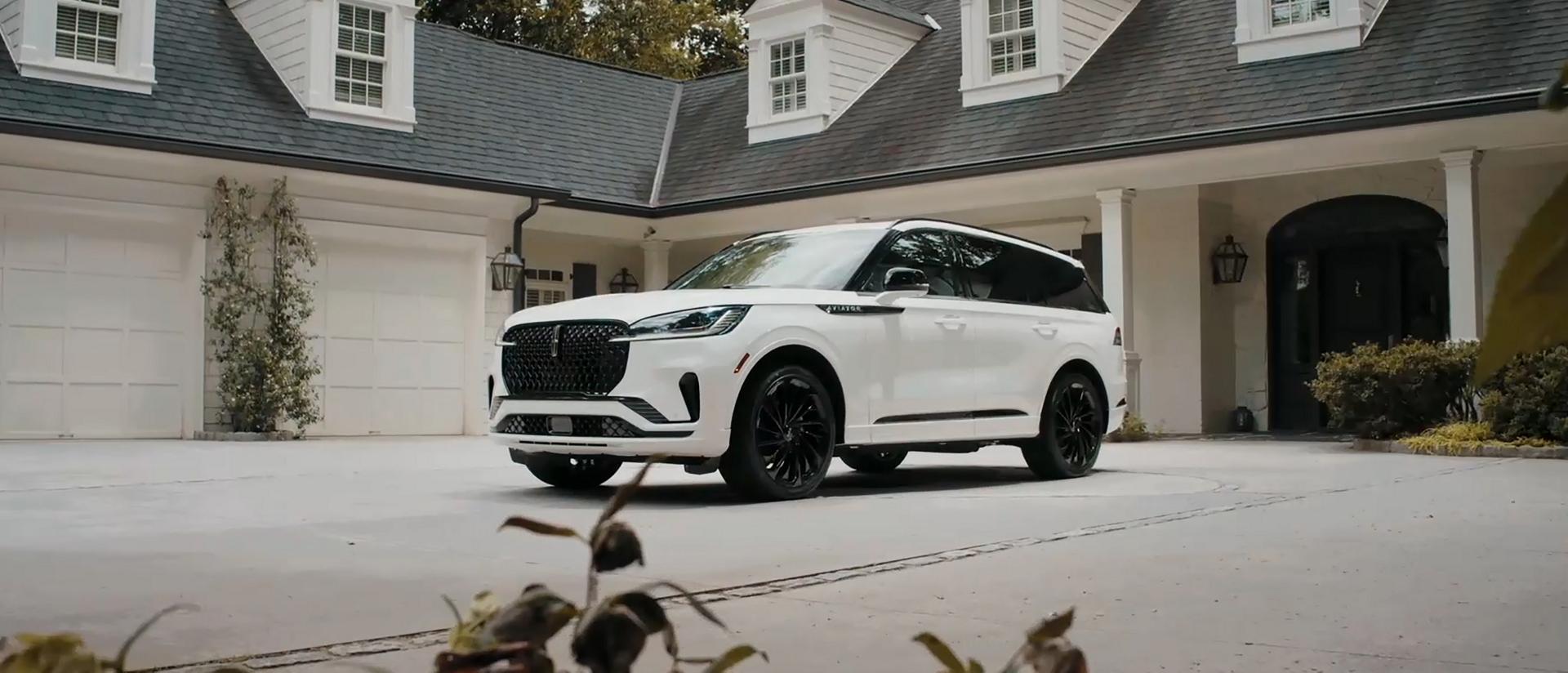

Jet Appearance Package (Requires Lincoln Co-Pilot360™ 1.5 Plus)
Lincoln Co-Pilot360™ 1.5 Plus Package Open image overlay for Lincoln Co-Pilot360™ 1.5 Plus Package

Safety

Standard

Pre-Collision Assist with Automatic Emergency Braking includes Dynamic Brake Support, Forward Collision Warning and Pedestrian Detection
Front Seat-Mounted Side-Impact Airbags
Driver Knee Airbag
Glove-box Door Integrated Knee Airbag
Belt-Minder® for All Seating Positions
MyKey®
Personal Safety System™ with Dual Stage Front Airbags
Safety Canopy® System with Side Curtain Airbags
SOS Post-Crash Alert System™
Tire Pressure Monitoring System (Excludes Spare Tire)
Lincoln Co-Pilot360™ 1.5

Security

Standard

Child-Safety Rear Door Locks
Perimeter Alarm
SecuriCode™ Keyless Entry Keypad
SecuriLock® Passive Anti-Theft System
Enhanced Security Package
LATCH (Lower Anchor and Tether Anchors for Children)

SEARCH FOR NEARBY RETAILERS

Need a retailer for specific services? Try our advanced search

MORE SHOPPING TOOLS

PAYMENT TOOLS

LINCOLN BENEFITS

Register or sign in for a more personalized experience.

LINCOLN SERVICES

Welcome back, {firstName}.

LINCOLN SERVICES

2023 LINCOLN AVIATOR® SUV

Specifications & Models

Aviator Reserve

AVIATOR RESERVE EQUIPMENT COLLECTIONS

RESERVE 200A

RESERVE 201A

AVIATOR® RESERVE DIMENSIONS

AVIATOR RESERVE HIGHLIGHTS

LINCOLN CO-PILOT360™ 1.5 PLUS

ELEMENTS PACKAGE PLUS

CLASS IV TRAILER TOW PACKAGE

Specifications

Highlights

Exterior

Interior

Capacities

Engine

Chassis

Power and Handling

Handling

Standard

Optional

Power

Standard

Interior Features

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Interior Accessories

Optional

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Packages

Free Standing Packages & Options

Standard

Optional

Safety

Safety

Standard

Security

Standard

SEARCH FOR NEARBY RETAILERS
