The Lincoln Aviator Grand Touring plug-in hybrid model shares many standard and available features with the Reserve model, but also has a powertrain that combines both a gas engine and battery-powered electric motor.
U.S. Model Shown.
...lessSEARCH INVENTORY BUILD & PRICE
Aviator Grand Touring offers three equipment collections to choose from:
...lessKey features:
All standard features of Aviator Grand Touring 300A, plus:
All standard features of Aviator Grand Touring 301A, plus:
*Certain limitations apply. See Owner's Manual for system limitation and details.
| ENGINE AND FUEL ECONOMY | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Engine Type | Twin-Turbocharged 3.0L V6 | Twin-Turbocharged 3.0L V6 with Nano Electric Motor |
| Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
Est. 13.7 L/100km city, 9.7 L/100km highway, 11.9 L/100km combined* | Electric + Gasoline = 4.2 Le/100km city/highway/combined* Gasoline only = 10.3 L/100km city/highway/combined* |
| VEHICLE HIGHLIGHTS | ||
| Max Seating Capacity | 7 | 7 |
| Drive Type | AWD | AWD |
| Transmissions | 10-Speed SelectShift® Automatic Transmission with Paddle Activation | 10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation |
| Wheelbase | 3,025 mm | 3,025 mm |
| Wheels Available | 20" Bright-Machined Aluminum with Magnetic-Painted Pockets 22" Bright-Machined Aluminum with Magnetic-Painted Pockets 22" Black Aluminum |
21" Bright-Machined Aluminum with Dark Alloy-Painted Pockets |
| Warranty | Bumper to Bumper: 4 years/80,000 km Powertrain: 6 years/110,000 km Safety Restraint System: 5 years/100,000 km Corrosion (Perforation Only) 5 years/Unlimited km Hybrid Unique Component: 8 years/160,000 km Roadside Assistance: 6 years/110,000 km |
Bumper to Bumper: 4 years/80,000 km Powertrain: 6 years/110,000 km Safety Restraint System: 5 years/100,000 km Corrosion (Perforation Only) 5 years/Unlimited km Hybrid Unique Component: 8 years/160,000 km Roadside Assistance: 6 years/110,000 km |
| ENGINE AND FUEL ECONOMY | Aviator Reserve | Aviator Grand Touring
|
|---|---|---|
| Engine Type | Twin-Turbocharged 3.0L V6 | Twin-Turbocharged 3.0L V6 with Nano Electric Motor |
| Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
21 mpg-lmp city, 29 mpg-lmp highway, 24 mpg-lmp combined | Electricity + Gasoline = 4.2 Le/100km city/highway/combined Gasoline only = 27 mpg-lmp city/highway/combined |
| VEHICLE HIGHLIGHTS | ||
| Max Seating Capacity | 7 | 7 |
| Drive Type | AWD | AWD |
| Transmissions | 10-Speed SelectShift® Automatic Transmission with Paddle Activation | 10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation |
| Wheelbase | 119.1 in. | 119.1 in. |
| Wheels Available | 20" Bright-Machined Aluminum with Magnetic-Painted Pockets 22" Bright-Machined Aluminum with Magnetic-Painted Pockets 22" Black Aluminum |
21" Bright-Machined Aluminum with Dark Alloy-Painted Pockets |
| Warranty | Bumper to Bumper: 4 years/50,000 miles Powertrain: 6 years/70,000 miles Safety Restraint System: 5 years/60,000 miles Corrosion (Perforation Only) 5 years/Unlimited miles Hybrid Unique Component: 8 years/100,000 miles Roadside Assistance: 6 years/70,000 miles |
Bumper to Bumper: 4 years/50,000 miles Powertrain: 6 years/70,000 miles Safety Restraint System: 5 years/60,000 miles Corrosion (Perforation Only) 5 years/Unlimited miles Hybrid Unique Component: 8 years/100,000 miles Roadside Assistance: 6 years/70,000 miles |

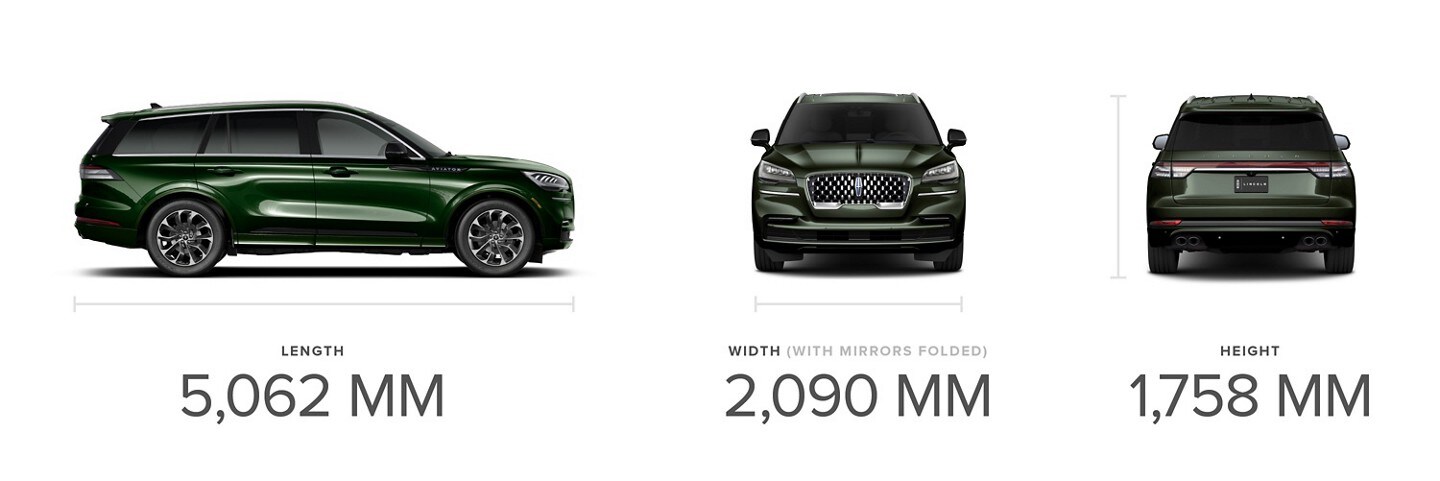

| Exterior Dimensions | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| mm | mm | |
| Wheelbase | 3,025 | 3,025 |
| Length | 5,063 | 5,063 |
| Height | 1,767 | 1,758 |
| Width - Excluding Mirrors | 2,022 | 2,022 |
| Width - Including Mirrors | 2,284 | 2,284 |
| Width - Mirrors Folded | 2,091 | 2,091 |
| Front Track | 1,700 | 1,700 |
| Rear Track | 1,700 | 1,700 |
| Exterior Dimensions | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| in. | in. | |
| Wheelbase | 119.1 | 119.1 |
| Length | 199.3 | 199.3 |
| Height | 69.6 | 69.2 |
| Width - Excluding Mirrors | 79.6 | 79.6 |
| Width - Including Mirrors | 89.9 | 89.9 |
| Width - Mirrors Folded | 82.3 | 82.3 |
| Front Track | 66.9 | 66.9 |
| Rear Track | 66.9 | 66.9 |
| Interior Dimensions | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| mm | mm | |
| Head Room - Front | 1,021 | 982 |
| Head Room - Middle | 975 | 975 |
| Head Room - Rear | 937 | 937 |
| Max Leg Room - Front | 1,093 | 1,093 |
| Leg Room - Middle |
990 | 990 |
| Leg Room - Rear | 741 | 741 |
| Hip Room - Front | 1,485 | 1,485 |
| Hip Room - Middle | 1,481 | 1,481 |
| Hip Room - Rear | 1,038 | 1,038 |
| Shoulder Room - Front | 1,563 | 1,563 |
| Shoulder Room - Middle | 1,557 | 1,557 |
| Shoulder Room - Rear | 1,372 | 1,372 |
| Interior Dimensions | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| in. | in. | |
| Head Room - Front | 40.3 | 38.7 |
| Head Room - Middle | 39.7 | 38.4 |
| Head Room - Rear | 36.9 | 36.9 |
| Max Leg Room - Front | 43.0 | 43.0 |
| Leg Room - Middle | 39.0 | 39.0 |
| Leg Room - Rear | 29.2 | 29.2 |
| Hip Room - Front | 58.5 | 58.5 |
| Hip Room - Middle | 58.3 | 58.3 |
| Hip Room - Rear | 40.9 | 40.9 |
| Shoulder Room - Front | 61.5 | 61.5 |
| Shoulder Room - Middle | 61.3 | 61.3 |
| Shoulder Room - Rear | 54.0 | 54.0 |
| CAPACITIES | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Maximum Seating Capacity | 7 | 7 |
| Standard Seating Capacity | 6 | 6 |
| L (unless otherwise noted) |
L (unless otherwise noted) |
|
| Passenger Volume | 4,097 | 3,980 |
| Cargo Volume Behind First Row | 2,201 | 2,200 |
| Cargo Volume Behind Second Row | 1,184 | 1,183 |
| Cargo Volume Behind Third Row | 519 | 519 |
| Fuel Capacity | 76 | 76 |
| Base Curb Weight | 2,205 kg | 2,573 kg |
| CAPACITIES | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Maximum Seating Capacity | 7 | 7 |
| Standard Seating Capacity | 6 | 6 |
| cu. ft. (unless otherwise noted) |
cu. ft. (unless otherwise noted) |
|
| Passenger Volume | 144.7 | 140.6 |
| Cargo Volume Behind First Row | 77.7 | 77.7 |
| Cargo Volume Behind Second Row | 41.8 | 41.8 |
| Cargo Volume Behind Third Row | 18.3 | 18.3 |
| Fuel Capacity | 20.2 gal. | 18.0 gal. |
| Base Curb Weight | 4,862 lbs. | 5,673 lbs. |
| POWERTRAIN | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Drive type | AWD | AWD |
| Engine type | Twin-Turbocharged 3.0L V6 | Twin-Turbocharged 3.0L V6 with Nano Electric Motor |
| Transmission | 10-Speed SelectShift® Automatic Transmission with Paddle Activation | 10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation |
| Final Drive Ratio | 3.58 | 3.31 |
| Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
Est. 13.7 L/100km city, 9.7 L/100km highway, 11.9 L/100km combined* | Electric + Gasoline = 4.2 Le/100km city/highway/combined* Gasoline only = 10.3 L/100km city/highway/combined* |
| Horsepower (SAE net @ rpm) | 400 @ 5,500* | 494 @ 5,500** |
| Torque (lb.-ft. @ rpm) | 415 @ 3,000* | 630 @ 2,250** |
| Compression Ratio | 9.5:1 | 9.5:1 |
| Valve Lifters | Roller Finger Follower | Roller Finger Follower |
| Fuel Delivery | High-Pressure Direct Injection | High-Pressure Direct Injection |
| Exhaust | True Dual Exhaust System with Quad Chrome Integrated Tips | True Dual Exhaust System with Quad Chrome Integrated Tips |
| Cylinder Head Material | Cast Aluminum | Cast Aluminum |
| *Horsepower and Torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. | ||
| **Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary. |
| POWERTRAIN | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Drive type | AWD | AWD |
| Engine type | Twin-Turbocharged 3.0L V6 | Twin-Turbocharged 3.0L V6 with Nano Electric Motor |
| Transmission | 10-Speed SelectShift® Automatic Transmission with Paddle Activation | 10-Speed SelectShift® Automatic Modular Hybrid Transmission with Paddle Activation |
| Final Drive Ratio | 3.58 | 3.31 |
| Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary. |
21 mpg-lmp city, 29 mpg-lmp highway, 24 mpg-lmp combined | Electricity + Gasoline = 4.2 Le/100km city/highway/combined Gasoline only = 27 mpg-lmp city/highway/combined |
| Horsepower (SAE net @ rpm) | 400 @ 5,500* | 494 @ 5,500** |
| Torque (lb.-ft. @ rpm) | 415 @ 3,000* | 630 @ 2,250** |
| Compression Ratio | 9.5:1 | 9.5:1 |
| Valve Lifters | Roller Finger Follower | Roller Finger Follower |
| Fuel Delivery | High-Pressure Direct Injection | High-Pressure Direct Injection |
| Exhaust | True Dual Exhaust System with Quad Chrome Integrated Tips | True Dual Exhaust System with Quad Chrome Integrated Tips |
| Cylinder Head Material | Cast Aluminum | Cast Aluminum |
| *Horsepower and Torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. | ||
| **Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary. |
| CHASSIS | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Front Suspension | Short Long Arm (SLA), Double Ball Joint Front Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs. | Short Long Arm (SLA), Double Ball Joint Front Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs. |
| Front Shocks | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. |
| Rear Suspension | Integral Link Rear Independent Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs. | Integral Link Rear Independent Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs. |
| Rear Shocks | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. |
| Brakes | Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®) | Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®) |
| Steering | Electric Power-Assisted Steering (EPAS). | Electric Power-Assisted Steering (EPAS). |
| CHASSIS | Aviator Reserve | Aviator Grand Touring |
|---|---|---|
| Front Suspension | Short Long Arm (SLA), Double Ball Joint Front Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs. | Short Long Arm (SLA), Double Ball Joint Front Suspension with Stabilizer Bar. Optional Dual Chamber Air Springs. |
| Front Shocks | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. |
| Rear Suspension | Integral Link Rear Independent Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs. | Integral Link Rear Independent Suspension with Isolated Sub-Frame and Stabilizer Bar. Optional Dual Chamber Air Springs. |
| Rear Shocks | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. | Gas-Pressurized, Hydraulic, Monotube Shocks. Optional Adaptive Suspension. |
| Brakes | Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®) | Power 4-Wheel Disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®) |
| Steering | Electric Power-Assisted Steering (EPAS). | Electric Power-Assisted Steering (EPAS). |
