2022 Nautilus
Specifications & Models

NAUTILUS RESERVE

Enjoy custom control of your driving experience with a powerful engine lineup, available Lincoln Co-Pilot360™ 1.0 Plus Package and a standard Panoramic Vista Roof® with power shade.

SEARCH INVENTORY BUILD & PRICE

Nautilus Reserve offers two equipment collections to choose from:

RESERVE 200A
Key Features such as:
- Premium Leather-Trimmed Heated and Ventilated 1st Row Seats and Heated 2nd Row Seats
- Panoramic Vista Roof® with Power Shade
- Revel® Audio System with 13 Speakers and HD Radio
- 18" Premium Painted Bright-Machined Aluminum Wheels
- 13.2" LCD Touchscreen in Centre Stack
- Wireless Charging Pad⁵¹
- Phone as A Key
- Lincoln Co-Pilot 360™ 1.0 and Available Lincoln Co-Pilot 360™ 1.0 Plus¹⁰
- Available Trailer Tow Package
- Available Monochromatic Package
BUILD & PRICE
RESERVE 201A
All Standard Features of Nautilus 200A Plus:
- Lincoln Co-Pilot 360™ 1.0 Plus¹⁰
- 20" Premium Painted Ultra Bright-Machined Aluminum Wheels
- Available Ultra Comfort 22-Way Seats with Active Motion
- Available Ultimate Package
BUILD & PRICE

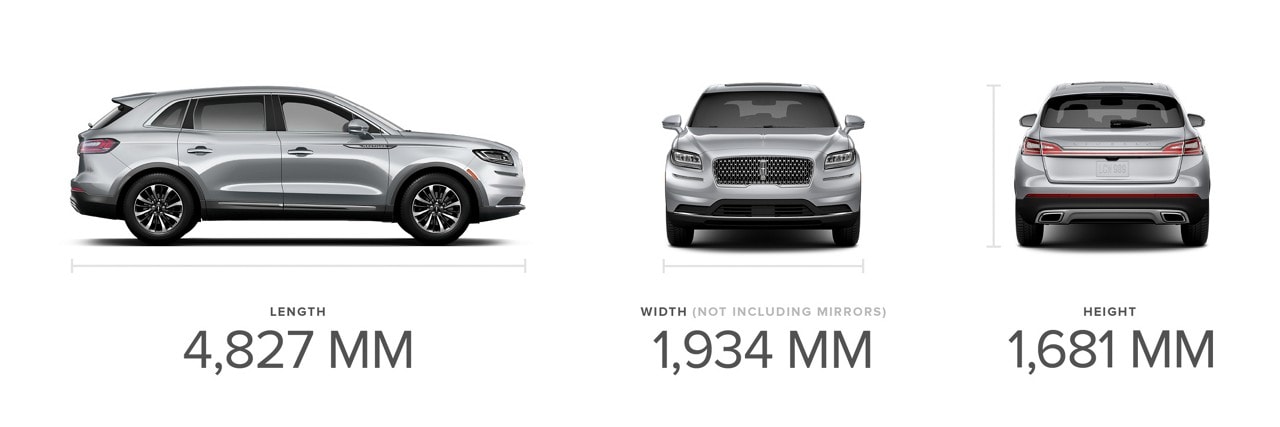

VEHICLE DIMENSIONS

NAUTILUS RESERVE HIGHLIGHTS

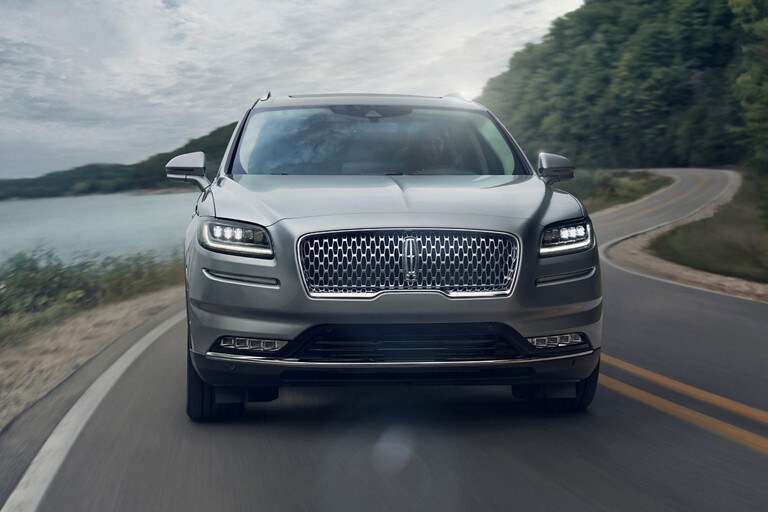

The front end of the 2022 Lincoln Nautilus is shown being driven around an S-curve on a lakeside road

Engine Lineup

Find a balance between aggressive power and quiet flight with a turbocharged 2.0L I-4 engine or twin-turbocharged 2.7L V6 engine.

Available Lincoln Co-Pilot360™ 1.0 Plus Package

Upgrade your driver-assistance technology with available features like Adaptive Cruise Control with Stop-and-Go¹⁰ and Lane Centring Assist¹³⁸, Active Park Assist⁹ and a 360-Degree Camera¹⁰.

Panoramic Vista Roof®

With an expansive Panoramic Vista Roof® that spans both rows of seating, you can invite in light and abundance on your journey or use the power sunshade to keep the interior cool on warmer days.

Specifications

Highlights

Switch to Imperial Units Switch to Metric Units

Engine and fuel Consumption
Engine Type	Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology	Twin-Turbocharged 2.7L V6 with Auto Start-Stop Technology
Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	11.8 L/100 km city, 9.4 L/100 km hwy, 10.7 L/100 km combined*	12.6 L/100 km city, 9.3 L/100 km hwy, 11.2 L/100 km combined*
Vehicle Highlights
Max Seating Capacity	5	5
Drive Type	AWD	AWD
Transmission	8-Speed SelectShift® automatic transmission with paddle activation	8-Speed SelectShift® automatic transmission with paddle activation
Wheelbase	2,849 mm	2,849 mm
Wheels Available	20" Premium Painted Bright-Machined Aluminum (Std. on Nautilus Reserve) 21" Premium Painted Ultra-Bright Machined Aluminum (Opt. on Nautilus Reserve)	20" Premium Painted Bright-Machined Aluminum (Std. on Nautilus Reserve) 21" Premium Painted Ultra-Bright Machined Aluminum (Opt. on Nautilus Reserve)
Warranty	Basic: 4 years/80,000 km Powertrain: 6 years/110,000 km Safety Restraint System: 5 years/100,000 km Corrosion (Perforation Only) 5 years/Unlimited km Roadside Assistance: 6 years/110,000 km	Basic: 4 years/80,000 km Powertrain: 6 years/110,000 km Safety Restraint System: 5 years/100,000 km Corrosion (Perforation Only) 5 years/Unlimited km Roadside Assistance: 6 years/110,000 km

Engine and fuel Consumption
Engine Type	Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology	Twin-Turbocharged 2.7L V6 with Auto Start-Stop Technology
Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	24 mpg city, 30 mpg hwy, 26 mpg combined*	22 mpg city, 30 mpg hwy, 25 mpg combined*
Vehicle Highlights
Max Seating Capacity	5	5
Drive Type	AWD	AWD
Transmission	8-Speed SelectShift® automatic transmission with paddle activation	8-Speed SelectShift® automatic transmission with paddle activation
Wheelbase	112.2 in	112.2 in
Wheels Available	20" Premium Painted Bright-Machined Aluminum (Std. on Nautilus Reserve) 21" Premium Painted Ultra-Bright Machined Aluminum (Opt. on Nautilus Reserve)	20" Premium Painted Bright-Machined Aluminum (Std. on Nautilus Reserve) 21" Premium Painted Ultra-Bright Machined Aluminum (Opt. on Nautilus Reserve)
Warranty	Basic: 4 years/50,000 miles Powertrain: 6 years/70,000 miles Safety Restraint System: 5 years/60,000 miles Corrosion (Perforation Only) 5 years/Unlimited miles Roadside Assistance: 6 years/70,000 miles	Basic: 4 years/50,000 miles Powertrain: 6 years/70,000 miles Safety Restraint System: 5 years/60,000 miles Corrosion (Perforation Only) 5 years/Unlimited miles Roadside Assistance: 6 years/70,000 miles

Exterior

Switch to Imperial Units Switch to Metric Units

Exterior Dimensions	[ mm ]
Wheelbase	2,849
Length	4,827
Height	1,681
Width - Excluding Mirrors	1,934
Width - Including Mirrors	2,188
Width - Mirrors Folded	2,000
Front Track	1,645
Rear Track	1,643

Exterior Dimensions	[ in ]
Wheelbase	112.2
Length	190.0
Height	66.2
Width - Excluding Mirrors	76.1
Width - Including Mirrors	86.1
Width - Mirrors Folded	78.7
Front Track	64.8
Rear Track	64.7

Interior

Switch to Imperial Units Switch to Metric Units

Interior Dimensions	[ mm ]
Head Room - First Row	1,013
Head Room - Second Row	996
Max. Leg Room - First Row	1,086
Leg Room - Second Row	1,007
Hip Room - First Row	1,433
Hip Room - Second Row	1,411
Shoulder Room - First Row	1,495
Shoulder Room - Second Row	1,498

Interior Dimensions	[ in ]
Head Room - First Row	39.9
Head Room - Second Row	39.2
Max. Leg Room - First Row	42.8
Leg Room - Second Row	39.6
Hip Room - First Row	56.4
Hip Room - Second Row	55.6
Shoulder Room - First Row	58.9
Shoulder Room - Second Row	59.0

Capacities

Switch to Imperial Units Switch to Metric Units

Capacities	[L]
Seating Capacity (Max.)	5
Passenger Volume	3,065
Cargo Volume Behind First Row	1,948
Cargo Volume Behind Second Row	1,055
Fuel Capacity	68.1L

Capacities	[cu. ft].
Seating Capacity (Max.)	5
Passenger Volume	108.3
Cargo Volume Behind First Row	68.8
Cargo Volume Behind Second Row	37.2
Fuel Capacity	18 gallons

Engine

Switch to Imperial Units Switch to Metric Units

Powertrain
Drive type	AWD	AWD
Engine type	Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology	Twin-Turbocharged 2.7L V6 with Auto Start-Stop Technology
Transmission	8-Speed SelectShift^® automatic transmission with paddle activation	8-Speed SelectShift^® automatic transmission with paddle activation
Final drive ratio	3.8	3.65
Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	11.8 L/100 km city, 9.4 L/100 km hwy, 10.7 L/100 km combined*	12.6 L/100 km city, 9.3 L/100 km hwy, 11.2 L/100 km combined*
Horsepower (SAE net @ rpm)	250 @ 5,500*	335 @ 5,500*
Torque (lb.-ft. @ rpm)	280 @ 3,000*	380 @ 3,250*
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
Compression ratio	10.0:1	10.0:1
Valve lifters	Direct acting mechanical bucket	Rolling finger follower and hydraulic lash adjusters
Fuel delivery	High-pressure direct injection	Direct injection
Exhaust	True Dual exhaust system with dual chrome integrated tips	True Dual exhaust system with dual chrome integrated tips
Engine block type	Die cast aluminum	Compacted Graphite Iron
Cylinder head material	Cast aluminum	Cast aluminum
Estimated Base Curb weight	1,953 kg.	2,071 kg.

Powertrain
Drive type	AWD	AWD
Engine type	Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology	Twin-Turbocharged 2.7L V6 with Auto Start-Stop Technology
Transmission	8-Speed SelectShift^® automatic transmission with paddle activation	8-Speed SelectShift® automatic transmission with paddle activation
Final drive ratio	3.8	3.65
Fuel Consumption *Fuel Consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	24 mpg city, 30 mpg hwy, 26 mpg combined*	22 mpg city, 30 mpg hwy, 25 mpg combined*
Horsepower (SAE net @ rpm)	250 @ 5,500*	335 @ 5,500*
Torque (lb.-ft. @ rpm)	280 @ 3,000*	380 @ 3,250*
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
Compression ratio	10.0:1	10.0:1
Valve lifters	Direct acting mechanical bucket	Rolling finger follower and hydraulic lash adjusters
Fuel delivery	High-pressure direct injection	Direct injection
Exhaust	True Dual exhaust system with dual chrome integrated tips	True Dual exhaust system with dual chrome integrated tips
Engine block type	Die cast aluminum	Compacted Graphite Iron
Cylinder head material	Cast aluminum	Cast aluminum
Estimated Base Curb weight	4,305 lbs.	4,565 lbs.

Chassis

Switch to Imperial Units Switch to Metric Units

Chassis
Front suspension	Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar
Front shocks	Gas-pressurized, hydraulic, twin-tube shocks with Adaptive Suspension
Rear suspension	Integral link rear independent suspension with isolated subframe and stabilizer bar
Rear shocks	Gas-pressurized, hydraulic, twin-tube shocks with Adaptive Suspension
Brakes	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS)

Chassis
Front suspension	Independent, MacPherson struts and L-shaped lower control arm with isolated subframe and stabilizer bar
Front shocks	Gas-pressurized, hydraulic, twin-tube shocks with Adaptive Suspension
Rear suspension	Integral link rear independent suspension with isolated subframe and stabilizer bar
Rear shocks	Gas-pressurized, hydraulic, twin-tube shocks with Adaptive Suspension
Brakes	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS)

Power and Handling

Handling

Standard

Hill Start Assist
Intelligent All-Wheel Drive (AWD) Open image overlay for Intelligent All-Wheel Drive (AWD)
AdvanceTrac® with Roll Stability Control™
Torque Vectoring Control
Electric Power-Assisted Steering (EPAS) Open image overlay for Electric Power-Assisted Steering (EPAS)
Auto Hold Open image overlay for Auto Hold
Lane-Keeping System
Power 4-Wheel Disc Anti-Lock Brake System (ABS)
Post-Collision Braking

Optional

Adaptive Suspension Open image overlay for Adaptive Suspension
Evasive Steering Assist

Power

Standard

Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology Open image overlay for Turbocharged 2.0L I-4 engine with Auto Start-Stop Technology
8-Speed Automatic Transmission
Engine Block Heater

Optional

Twin-Turbocharged 2.7L V6 engine with Auto Start-Stop Technology Open image overlay for Twin-Turbocharged 2.7L V6 engine with Auto Start-Stop Technology
8-Speed SelectShift® Automatic Transmission with Paddle Activation Open image overlay for 8-Speed SelectShift® Automatic Transmission with Paddle Activation

Wheels & Tires

Standard

18" Premium Painted Bright-Machined Aluminum Wheels

Optional

20" Premium Painted Bright-Machined Aluminum Wheels
20" Black Aluminum Wheels
21" Premium Painted Bright-Machined Aluminum Wheels

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Controls

Comfort and Convenience

Standard

Carpeted Front and Rear Floor Mats
Dual-Illuminated Visor Vanity Mirrors with Sliding Feature
Frameless Interior Rearview Mirror with Auto-Dimming feature
Blind Spot Information System Open image overlay for Blind Spot Information System
Cross-Traffic Alert
Front Centre Floor Console with Armrest, Deep Storage Bin, Two Cupholders and Powerpoint
Ambient lighting
Heated Steering Wheel
Leather-Wrapped Steering Wheel with Cruise Control and Secondary Audio Controls
12.3" LCD Instrument Cluster Display Screen
Electric Parking Brake
Remote Keyless Entry
Intelligent Access with Push-Button Start
Remote Start System
Piano Key Shifter
Overhead Console with Sunglasses Holder
Active Noise Control
Cabin Particulate Air-Filtration System
Power Tilt/Telescopic Steering Column with Memory Feature
Universal Garage Door Opener
Intermittent, Rain-Sensing Windshield Wipers Open image overlay for Intermittent, Rain-Sensing Windshield Wipers
Lincoln Embrace
Active Park Assist Open image overlay for Active Park Assist
Front-Passenger Sensing System
Wireless Charging Pad
Cargo Management System
Rear view camera with camera wash
Phone As A Key
13.2" LCD Capacitive Touchscreen in Centre Stack

Optional

Distance Indication and Alert
Forward Sensing System
Adaptive Cruise Control with Stop-and-Go and Lane Centering Assist
Santos Rosewood wood Trim dependent on interior colour
Espresso Ash Swirl Open Pore Wood Trim dependent on interior colour
Linear Brushed Aluminum Trim dependent on interior colour
360-Degree Camera Open image overlay for 360-Degree Camera
110V/150W AC Power Outlet
Rear Cargo Net

Entertainment Systems

Standard

Revel® Audio System with 13-speakers and HD Radio™ Technology
Smart Charging USB Ports
Lincoln Connect™ 4G LTE embedded modem with Wi-Fi Hotspot capability
SiriusXM® with 360L Satellite Radio
SYNC® 4 Cloud-Based Connectivity Open image overlay for SYNC® 4 Cloud-Based Connectivity
Connected Built-In Navigation System

Optional

Revel® Ultima Audio System with 19-speakers and HD Radio™ Technology Open image overlay for Revel® Ultima Audio System with 19-speakers and HD Radio™ Technology
Lincoln Play Rear Seat Entertainment System with wireless headphones (Not available with Ultra Comfort front seats)

Interior Accessories

Optional

Cargo Accessories and Mat Package

Seating

Standard

Bridge of Weir Deepsoft™ Leather-Trimmed Seats
Comfort Front Seats with Power Adjustability, Heated/Ventilated and Driver-Side Memory
60/40 Split-Fold rear bench seat with EasyFold® seatback release
Heated Rear Outboard Seats

Optional

Ultra Comfort Front Seats with 22-way Power Adjustability including Power Thigh Extenders and Head Restraints plus Active Motion® Massage Functionality Open image overlay for Ultra Comfort Front Seats with 22-way Power Adjustability including Power Thigh Extenders and Head Restraints plus Active Motion® Massage Functionality

Exterior Features

Appearance

Standard

Full LED Headlamps with Autolamp and LED dynamic Signature Lighting
Auto High-Beam Headlamps
LED Tail lamps
Dual Exhaust Chrome Tips
Body-Coloured Door Handles
Power-adjustable Autofold, Heated sideview Mirrors with LED Turn Signal Indicators, Memory and Auto-Dimming Driver-Side Mirror Open image overlay for Power-adjustable Autofold, Heated sideview Mirrors with LED Turn Signal Indicators, Memory and Auto-Dimming Driver-Side Mirror
Easy Fuel® Capless Fuel Filler
Hands-Free Liftgate Open image overlay for Hands-Free Liftgate
Reverse Sensing System
Illuminated front door scuff plates

Optional

Full LED Multi-Projector Headlamps Open image overlay for Full LED Multi-Projector Headlamps
LED Fog Lamps
Satin Roof-Rack Side Rails

Windows & Glass

Standard

Panoramic Vista Roof® Open image overlay for Panoramic Vista Roof®
Rear-Window Defroster with Washer and Wiper
Acoustic-laminated front door snd windshield glass
Privacy Glass on Rear Doors, Quarter and Liftgate Glass
Power Windows with One Touch Up/Down Feature

Safety

Standard

Front Seat-Mounted Side-Impact Airbags
Driver's Knee Airbag
Height-Adjustable Front Seat Safety Belts with Belt-Minder® System
MyKey®
Personal Safety System™
Safety Canopy® System
SOS Post-Crash Alert System™
Tire Pressure Monitoring System (TPMS)
Lower Anchors and Tether Anchors for Children (LATCH)
Glove-box door integrated knee airbag

Security

Standard

Child-Safety Rear Door Locks
Perimeter Alarm
SecuriCode™ Keyless Entry Keypad
SecuriLock® Passive Anti-Theft System
Pre-collision Assist with Automatic Emergency Braking
Tire Mobility Kit

MORE SHOPPING TOOLS

PAYMENT TOOLS

MORE REASONS WHY

Register or sign in for a more personalized experience.

LINCOLN SERVICES

Welcome back, {firstName}.

LINCOLN SERVICES

2022 Nautilus Specifications & Models

NAUTILUS RESERVE

RESERVE 200A

RESERVE 201A

VEHICLE DIMENSIONS

NAUTILUS RESERVE HIGHLIGHTS

Engine Lineup

Available Lincoln Co-Pilot360™ 1.0 Plus Package

Panoramic Vista Roof®

Specifications

Highlights

Exterior

Interior

Capacities

Engine

Chassis

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Interior Accessories

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Safety

Safety

Standard

Security

Standard

Packages

Standard Features

Standard

Packages

Standard

Optional

Free Standing Packages & Options

Optional

2022 Nautilus
Specifications & Models
