2023 Corsair
Specifications & Models

View 2023 Lincoln Corsair Standard model View 2023 Lincoln Corsair Standard model
View 2023 Lincoln Corsair Reserve model View 2023 Lincoln Corsair Reserve model
View 2023 Lincoln Corsair Grand Touring model View 2023 Lincoln Corsair Grand Touring model

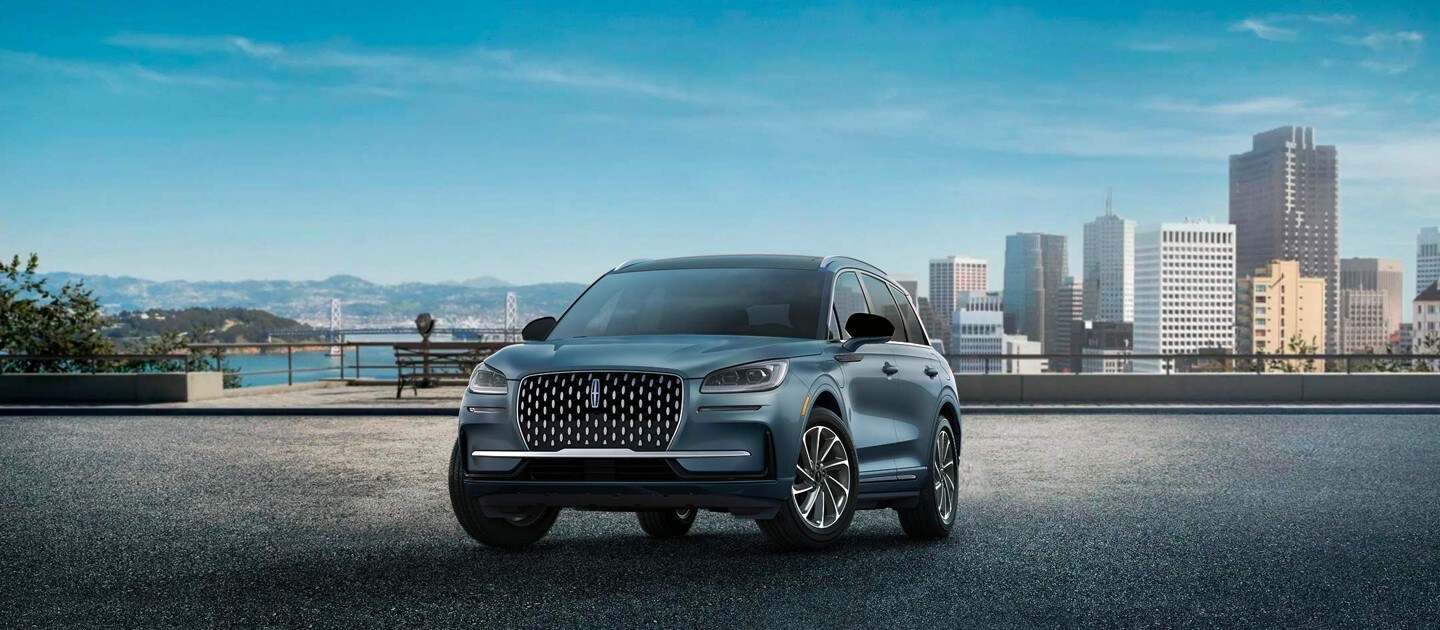

CORSAIR GRAND TOURING

Enjoy luxury without compromise with a 2.5L Atkinson-cycle four-cylinder gas engine and plug-in hybrid technology and a new Grand Touring grille design.

BUILD & PRICE

Some models, trims, and features may not be available. Please contact your local Lincoln Retailer for updates and assistance.

CORSAIR GRAND TOURING EQUIPMENT COLLECTIONS

GRAND TOURING 300A
All Features of Corsair Reserve 300A, plus these and more:
- Gas engine plus plug-in hybrid technology
- Continuously Variable Automatic Transmission
- All-Wheel Drive
- Panoramic Moonroof
BUILD & PRICE
GRAND TOURING 301A
The Grand Touring 301A Equipment Collection includes Grand Touring 300A features, plus:
- Lincoln Co-Pilot360™ 2.1 Vision¹⁰
- Hands-Free Liftgate¹⁶
- Wireless Charging Pad⁵¹
BUILD & PRICE
GRAND TOURING 302A
The Grand Touring 302A Equipment Collection includes Grand Touring 301A features, plus these and more:
- Lincoln Co-PIlot360™ 2.1 Drive¹⁰ with ActiveGlide 1.2¹⁴⁶
- 14-Speaker Revel® Audio System⁸⁶
- Head-Up Display¹²
- Auto Air Refresh
BUILD & PRICE

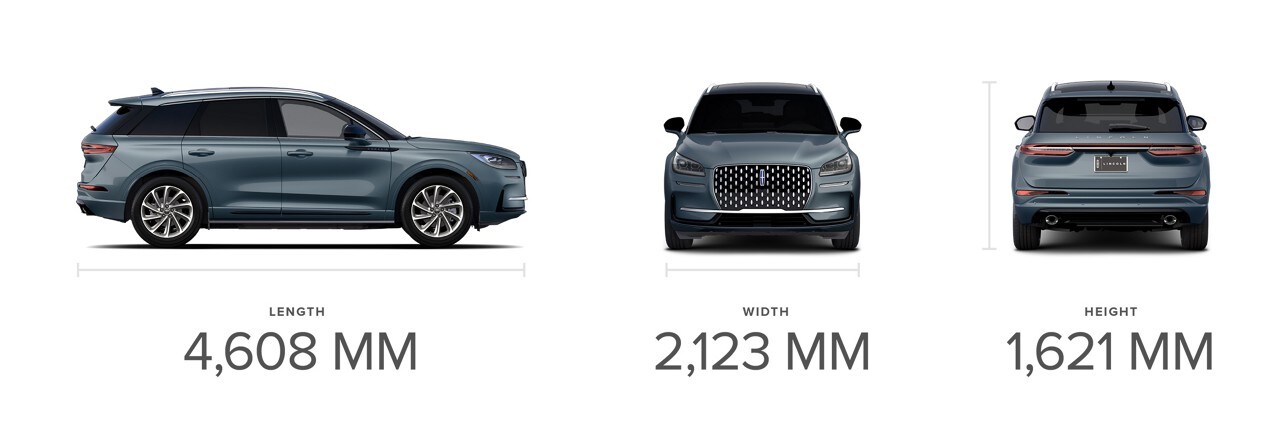

VEHICLE DIMENSIONS

CORSAIR GRAND TOURING HIGHLIGHTS

A 2023 Lincoln Corsair Grand Touring is being driven along a coastline

2.5L GRAND TOURING PLUG-IN HYBRID ENGINE

The Corsair Grand Touring combines the benefits of a 2.5L I-4 gas engine with an electrified powertrain to offer smooth performance designed for long journeys.

The centre touchscreen of a 2023 Lincoln Corsair SUV displays SYNC® 4 settings

SYNC® 4 WITH ENHANCED VOICE RECOGNITION

Take your favourite content everywhere you go. The new SYNC® 4⁹ system offers Enhanced Voice Recognition Communications. With Apple CarPlay® and Android Auto™ compatibility*, you can wirelessly connect your phone for a seamless user experience.

Computer-generated Corsair Reserve model shown.

*Requires phone with active data service and compatible software. SYNC 4 does not control third-party products while in use. Third-parties are solely responsible for their respective functionality.

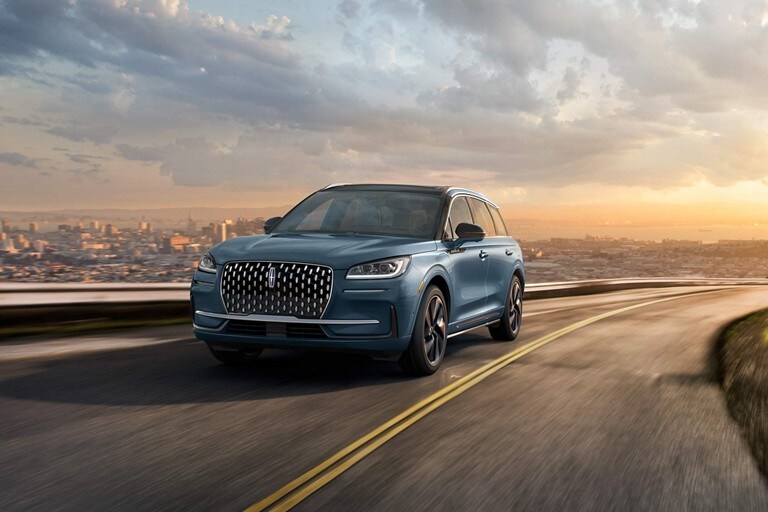

A 2023 Lincoln Corsair Grand Touring model is being driven on a hillside road

GRAND TOURING GRILLE DESIGN

The Lincoln Corsair Grand Touring comes with a unique grille design featuring signature spirit blue detailing. The shape of the Lincoln Star is repeated throughout the grille with floating sundown satin accents that catch the light to stand out against black webbing.

Computer-generated Corsair Grand Touring U.S. model shown.

Specifications

Exterior

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Exterior Dimensions	[ mm ]	[ mm ]	[ mm ]
Wheelbase	2,711	2,711	2,711
Length	4,608	4,608	4,608
Height	1,629	1,631	1,621
Width - Excluding Mirrors	1,887	1,887	1,887
Width - Including Mirrors	2,108	2,123	2,123
Width - Mirrors Folded	1,936	1,941	1,941
Front Track	1,591	1,581	1,591
Rear Track	1,611	1,601	1,611

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Exterior Dimensions	[ in ]	[ in ]	[ in ]
Wheelbase	106.7	106.7	106.7
Length	181.4	181.4	181.4
Height	64.1	64.2	63.8
Width - Excluding Mirrors	74.3	74.3	74.3
Width - Including Mirrors	83.0	83.6	83.6
Width - Mirrors Folded	76.2	76.4	76.4
Front Track	62.6	62.2	62.6
Rear Track	63.4	63.0	63.4

Curb weight

Estimated Base Curb weight	kg.
Turbocharged 2.0L I-4	1,739
2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine	1,994

Estimated Base Curb weight	lbs.
Turbocharged 2.0L I-4	3,836
2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine	4,397

Interior

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Interior Dimensions	[ mm ]	[ mm ]	[ mm ]
Head Room - First Row	1,004	976	976
Head Room - Second Row	982	975	975
Maximum Leg Room - First Row	1,097	1,087	1,097
Leg Room - Second Row	981	972	933
Hip Room - First Row	1,412	1,412	1,412
Hip Room - Second Row	1,290	1,290	1,290
Shoulder Room - First Row	1,451	1,444	1,451
Shoulder Room - Second Row	1,431	1,431	1,431

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Interior Dimensions	[ in ]	[ in ]	[ in ]
Head Room - First Row	39.5	38.4	38.4
Head Room - Second Row	38.7	38.4	38.4
Maximum Leg Room - First Row	43.2	42.8	43.2
Leg Room - Second Row	38.6	38.3	36.7
Hip Room - First Row	55.6	55.6	55.6
Hip Room - Second Row	50.8	50.8	50.8
Shoulder Room - First Row	57.1	56.9	57.1
Shoulder Room - Second Row	56.3	56.3	56.3

Capacities

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Capacities	[L]	[L]	[L]
Passenger Volume	2,903	2,838	2,790
Cargo Volume Behind First Row	1,631	1,583	1,593
Cargo Volume Behind Second Row	962	941	941

	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Capacities	[cu. ft.]	[cu. ft.]	[cu. ft.]
Passenger Volume	102.5	100.2	98.5
Cargo Volume Behind First Row	57.6	55.9	56.2
Cargo Volume Behind Second Row	34.0	33.2	33.2

Engine

Drive type	AWD	AWD	AWD
Engine type	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine
Transmission	8-Speed SelectShift® Automatic transmission with paddle activation	8-Speed SelectShift® Automatic transmission with paddle activation	Continuously Variable Transmission (CVT)
Final drive ratio	3.81	3.81	2.91
EPA-Estimated Ratings	11.2 L/100 km city, 8.3 L/100 km hwy, 9.9 L/100 km combined*	11.2 L/100 km city, 8.3 L/100 km hwy, 9.9 L/100 km combined*	Electricity + Gasoline = 3.1 Le/100km city/hwy combined
*Fuel consumption ratings based on Government of Canada approved test methods.			Gasoline only = 7.1 L/100km city/hwy combined
Horsepower (SAE net @ rpm)	250 @ 5,500*	250 @ 5,500*	266 HP Combined**
Tested with 93-octane fuel.
Torque (lb.-ft. @ rpm)	275 @ 3,000*	275 @ 3,000*	—
Tested with 93-octane fuel.
Compression ratio	10.0:1	10.0:1	13.0:1
Valve lifters	Mechanical bucket	Mechanical bucket	Mechanical bucket
Fuel delivery	High pressure direct injection	High pressure direct injection	Port Fuel Injection
Exhaust	Dual with polished tips	Dual with polished tips	Dual outlet with polished tips
Engine block type	High pressure die cast aluminum	High pressure die cast aluminum	Sand cast aluminum
Cylinder head material	Die cast aluminum	Die cast aluminum	Sand cast aluminum
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
**Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary.

Drive type	AWD	AWD	AWD
Engine type	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine
Transmission	8-Speed SelectShift® Automatic transmission with paddle activation	8-Speed SelectShift® Automatic transmission with paddle activation	Continuously Variable Transmission (CVT)
Final drive ratio	3.81	3.81	2.91
EPA-Estimated Ratings	22 mpg city, 30 mpg hwy, 25 mpg combined*	22 mpg city, 30 mpg hwy, 25 mpg combined*	Electricity + Gasoline = 78 MPGe city/hwy combined
*Fuel consumption ratings based on Government of Canada approved test methods.			Gasoline only = 33mpg city/hwy combined
Horsepower (SAE net @ rpm)	250 @ 5,500*	250 @ 5,500*	266 HP Combined**
Tested with 93-octane fuel.
Torque (lb.-ft. @ rpm)	275 @ 3,000*	275 @ 3,000*	—
Tested with 93-octane fuel.
Compression ratio	10.0:1	10.0:1	13.0:1
Valve lifters	Mechanical bucket	Mechanical bucket	Mechanical bucket
Fuel delivery	High pressure direct injection	High pressure direct injection	Port Fuel Injection
Exhaust	Dual with polished tips	Dual with polished tips	Dual outlet with polished tips
Engine block type	High pressure die cast aluminum	High pressure die cast aluminum	Sand cast aluminum
Cylinder head material	Die cast aluminum	Die cast aluminum	Sand cast aluminum
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary.
**Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary.

Chassis

Chassis	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Front suspension	Front strut suspension with stabilizer bar.	Front strut suspension with stabilizer bar.	Front strut suspension with stabilizer bar.
Front shocks	Hydraulic shocks.	Hydraulic shocks. Adaptive Suspension optional.	Hydraulic shocks. Adaptive Suspension standard.
Rear suspension	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.
Rear shocks	Hydraulic shocks.	Hydraulic shocks. Adaptive Suspension optional.	Hydraulic shocks. Adaptive Suspension standard.
Brakes	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).

Chassis	Corsair Standard	Corsair Reserve	Corsair Grand Touring
Front suspension	Front strut suspension with stabilizer bar.	Front strut suspension with stabilizer bar.	Front strut suspension with stabilizer bar.
Front shocks	Hydraulic shocks.	Hydraulic shocks. Adaptive Suspension optional.	Hydraulic shocks. Adaptive Suspension standard.
Rear suspension	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.	Integral bush rear independent suspension with isolated sub-frame and stabilizer bar.
Rear shocks	Hydraulic shocks.	Hydraulic shocks. Adaptive Suspension optional.	Hydraulic shocks. Adaptive Suspension standard.
Brakes	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)	Power 4-wheel disc with Anti-Lock Braking System (ABS) and AdvanceTrac® with Roll Stability Control™ (RSC®)
Steering	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).	Electric Power-Assisted Steering (EPAS).

Highlights

Engine and Fuel Consumption Highlights	AWD	AWD	AWD
Engine Type	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine
*Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	11.2 L/100 km city, 8.3 L/100 km hwy, 9.9 L/100 km combined*	11.2 L/100 km city, 8.3 L/100 km hwy, 9.9 L/100 km combined*	Electricity + Gasoline = 3.1 Le/100km city/hwy combined
			Gasoline only = 7.1 L/100km city/hwy combined
Vehicle Highlights
Max Seating Capacity	5	5	5
Drive Type	AWD	AWD	AWD
Transmissions	8-Speed SelectShift® Automatic transmission with paddle activation	8-Speed SelectShift® Automatic transmission with paddle activation	Continuously Variable Transmission (CVT)
Wheelbase	2,711 mm	2,711 mm	2,711 mm
Wheels Available	18" Warm Alloy-Painted Aluminum	19" Bright-Machined Aluminum with Magnetic Finish	19" Bright-Machined Aluminum with Dark Tarnish Finish
	18" Bright-Machined Aluminum with Dark Tarnish Finish	20" Bright-Machined Aluminum with Black Finish	20" Bright-Machined Aluminum with Black Finish
	19" Bright-Machined Aluminum with Dark Tarnish Finish	20" Black Aluminum
	20" Black Aluminum
Warranty	Basic: 4 years, 80,000 km	Basic: 4 years, 80,000 km	Basic: 4 years, 80,000 km
	Corrosion: 5 years, unlimited distance	Corrosion: 5 years, unlimited distance	Corrosion: 5 years, unlimited distance
	Powertrain: 6 years, 110,000 km	Powertrain: 6 years, 110,000 km	Powertrain: 6 years, 110,000 km
	Safety Restraint: 5 years, 100,000 km	Safety Restraint: 5 years, 100,000 km	Safety Restraint: 5 years, 100,000 km
	Emissions: Defect/performance: 4 years, 80,000 km	Emissions: Defect/performance: 4 years, 80,000 km	Emissions: Defect/performance: 4 years, 80,000 km
	Roadside Assistance: 6 years, 110,000 km	Roadside Assistance: 6 years, 110,000 km	Roadside Assistance: 6 years, 110,000 km

Engine and Fuel Consumption Highlights	AWD	AWD	AWD
Engine Type	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.0L Turbocharged I-4 with Auto Start-Stop Technology	2.5L Atkinson-Cycle I-4 Plug-In-Hybrid Engine
*Fuel consumption ratings based on Government of Canada approved test methods. Actual fuel consumption will vary.	22 mpg city, 30 mpg hwy, 25 mpg combined*	22 mpg city, 30 mpg hwy, 25 mpg combined*	Electricity + Gasoline = 78 MPGe city/hwy combined
			Gasoline only = 33mpg city/hwy combined
Vehicle Highlights
Max Seating Capacity	5	5	5
Drive Type	AWD	AWD	AWD
Transmissions	8-Speed SelectShift® Automatic transmission with paddle activation	8-Speed SelectShift® Automatic transmission with paddle activation	Continuously Variable Transmission (CVT)
Wheelbase	106.7 in	106.7 in	106.7 in
Wheels Available	18" Warm Alloy-Painted Aluminum	19" Bright-Machined Aluminum with Magnetic Finish	19" Bright-Machined Aluminum with Dark Tarnish Finish
	18" Bright-Machined Aluminum with Dark Tarnish Finish	20" Bright-Machined Aluminum with Black Finish	20" Bright-Machined Aluminum with Black Finish
	19" Bright-Machined Aluminum with Dark Tarnish Finish	20" Black Aluminum
	20" Black Aluminum
Warranty	Basic: 4 years, 50,000 miles	Basic: 4 years, 50,000 miles	Basic: 4 years, 50,000 miles
	Corrosion: 5 years, unlimited distance	Corrosion: 5 years, unlimited distance	Corrosion: 5 years, unlimited distance
	Powertrain: 6 years, 70,000 miles	Powertrain: 6 years, 70,000 miles	Powertrain: 6 years, 70,000 miles
	Safety Restraint: 5 years, 60,000 miles	Safety Restraint: 5 years, 60,000 miles	Safety Restraint: 5 years, 60,000 miles
	Emissions: Defect/performance: 4 years, 50,000 miles	Emissions: Defect/performance: 4 years, 50,000 miles	Emissions: Defect/performance: 4 years, 50,000 miles
	Roadside Assistance: 6 years, 70,000 miles	Roadside Assistance: 6 years, 70,000 miles	Roadside Assistance: 6 years, 70,000 miles

Power and Handling

Handling

Standard

Intelligent All-Wheel Drive Open image overlay for Intelligent All-Wheel Drive
Adaptive Suspension
Traction Control
Hill Start Assist
Power 4-wheel disc Anti-lock Brake System (ABS)
Electric Parking Brake
2.91 Rear Axle Ratio
Electric Power-Assisted Steering (EPAS)
Lincoln Drive Modes Open image overlay for Lincoln Drive Modes
Integral Bush Rear Suspension Open image overlay for Integral Bush Rear Suspension
Auto Hold

Power

Standard

2.5L Atkinson I-4 Plug-In-Hybrid Engine
Active Grille Shutters
Continuously Variable Transmission (CVT)

Tires

Standard

Mini steel spare wheel with tire

Interior Features

Climate

Standard

Dual-zone Electronic Automatic Temperature Control (DEATC)

Comfort and Convenience

Standard

Symphonic Chimes
Intelligent Access with Push-Button Start
Piano Key Shifter
Active Noise Control
Lincoln Connect™
Lincoln Way™ App
Leather-wrapped steering wheel
Front and rear floor mats
Message centre with compass & outside temperature
Ambient lighting Open image overlay for Ambient lighting
Illuminated Lincoln Star for centre console
Illuminated front door scuff plates
Cabin and particulate air odour filter
Rear Window Defroster with Washer and Wiper
Auto-dimming rearview mirror
Manual tilt/telescoping steering column
Dual-illuminated front visor mirrors
One-touch-up-down front and rear windows
Power door locks
Overhead console with sunglasses holder
Front floor console with armrest and storage
Remote start system
12V powerpoints (2)
Lincoln Co-Pilot360™ 2.1
Cargo Management System
Personal Profiles
12.3" LCD Cluster Display
Post Collision Braking
Evasive Steering Assist
Forward Collision Warning
Dynamic Brake Support
Distance Indication and Alert
Intersection Assist
Rear Cross Traffic Braking

Optional

Phone As A Key
Wireless Charging Pad
360-Degree Camera
Finestra Aluminum Appliqué
Pista Aluminum Appliqué
Genuine wood trim
Auto Air Refresh
Frameless rearview mirror
Power tilt/telescoping steering column with memory
Universal Garage Door Opener
Heated Steering Wheel
Reverse Brake Assist
Star Light Metallic Appliqué
Intersection Assist 2.0

Entertainment Systems

Standard

Smart-Charging USB ports (2)
USB ports (2)
SYNC® 4⁷⁶ Enhanced Voice Recognition Communications Open image overlay for SYNC® 4⁷⁶ Enhanced Voice Recognition Communications
13.2" LCD touch-screen in centre stack with swipe capability
Connected Built-In Touchscreen Navigation System (3-years of Service)
Lincoln Premium Audio System with Ten Speakers Including Subwoofer
SiriusXM® with 360L Satellite Radio (3-month trial subscription)

Optional

Revel® Audio System with 14-speakers includes HD Radio™ Technology Open image overlay for Revel® Audio System with 14-speakers includes HD Radio™ Technology

Seating

Standard

Comfort Seats with power front seats with power lumbar and memory driver's seat
Heated Front Seats
60/40 Split-fold Rear Sliding Seat Open image overlay for 60/40 Split-fold Rear Sliding Seat
Premium leather-trimmed seats

Optional

Perfect Position 24-way power front seats with Active Motion® massage functionality Open image overlay for Perfect Position 24-way power front seats with Active Motion® massage functionality
Heated and ventilated front seats
Heated Rear Outboard Seats
EasyFold® rear seat back release

Exterior Features

Appearance

Standard

Auto High-Beam Headlamps
Heated, power adjustable exterior mirrors with auto-fold and memory feature
Blind Spot Information System with Cross Traffic Alert
Bright beltline moulding
Dual exhaust with polished tips
Daytime Running Lamps
Power Liftgate
Jeweled LED Headlamps with Dynamic Bending Open image overlay for Jeweled LED Headlamps with Dynamic Bending
Lane Keeping System with Blind Spot Assist
LED tail lights
Lincoln Embrace
Panoramic Vista Roof® with power sun shade Open image overlay for Panoramic Vista Roof® with power sun shade
Rear Parking Sensors
Roof Rack Side Rails
Easy Fuel® capless fuel filler
Charge Port door
Intermittent Front Windshield Wipers
Engine Block Heater
19" Bright-Machined Aluminum with Dark Tarnish Finish

Optional

Active Park Assist 2.0
Intelligent Adaptive Cruise Control includes Stop-and-Go, Lane Centering Assist, Speed Sign Recognition and Predictive Speed Assist
Auto-dimming driver's side view mirror
Hands-Free Liftgate
Rain-Sensing Wipers
LED turn signal indicators on side-view mirrors
Windshield wiper de-icer
20" Bright-Machined Aluminum with Black Finish

Windows & Glass

Standard

Privacy glass for rear doors, quarter and liftgate windows
Acoustic Laminated windshield glass

Safety

Standard

Pre-Collision Assist with Automatic Emergency Braking (AEB)¹¹⁸ Open image overlay for Pre-Collision Assist with Automatic Emergency Braking (AEB)¹¹⁸
AdvanceTrac® with Roll Stability Control™ (RSC®)
Rear View Camera
Personal Safety System™
Dual-Stage Front Airbags
Front and rear side-impact airbags
Safety Canopy® System with Side Curtain Airbags
Driver Knee Airbag
Glove-Box-Door-Integrated Knee Airbag
Tire-Pressure Monitoring System
LATCH (Lower Anchors and Tether Anchors for Children)
SOS Post-Crash Alert System™
Belt-Minder® safety belt reminder

Security

Standard

Audible Vehicle Warning System - EV Pedestrian Sounder
Remote Keyless Entry System
Perimeter alarm
SecuriLock® passive anti-theft system
Child-safety rear door locks
SecuriCode™ keyless entry keypad

MORE SHOPPING TOOLS

PAYMENT TOOLS

LINCOLN BENEFITS

Register or sign in for a more personalized experience.

LINCOLN SERVICES

Welcome back, {firstName}.

LINCOLN SERVICES

2023 Corsair Specifications & Models

CORSAIR GRAND TOURING

CORSAIR GRAND TOURING EQUIPMENT COLLECTIONS

GRAND TOURING 300A

GRAND TOURING 301A

GRAND TOURING 302A

VEHICLE DIMENSIONS

CORSAIR GRAND TOURING HIGHLIGHTS

2.5L GRAND TOURING PLUG-IN HYBRID ENGINE

SYNC® 4 WITH ENHANCED VOICE RECOGNITION

GRAND TOURING GRILLE DESIGN

Specifications

Exterior

Curb weight

Interior

Capacities

Engine

Chassis

Highlights

Power and Handling

Handling

Standard

Power

Standard

Tires

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Safety

Safety

Standard

Security

Standard

Packages

Free Standing Packages & Options

Optional

2023 Corsair
Specifications & Models
