NAVIGATOR RESERVE

Enhance your ride with heated and ventilated Perfect Position Seating, Lincoln Co-Pilot360 driver-assist technology and an immersive Revel® Audio System.

SEARCH INVENTORY BUILD & PRICE

Navigator Reserve offers two equipment collections to choose from:

RESERVE 201A
All Standard Features of Navigator, plus:
- 22” 12-Spoke Bright Machined Aluminum Wheel with Dark Tarnish Painted Pockets
- 360-Degree Camera with Rear Camera Wash
- Power Deployable Illuminated Running Boards
- First Row 24-Way Perfect Position Seats
- Head-Up Display
- Lincoln Lit Star in Grille
BUILD & PRICE
RESERVE 208A MONOCHROMATIC PACKAGE
All Standard Features of Navigator Reserve I, plus:
- 22” Black Aluminum Painted Wheel
- Unique Body-Colour Mesh Grille
- Sideview Mirror with Body-Colour Painted Cap
BUILD & PRICE

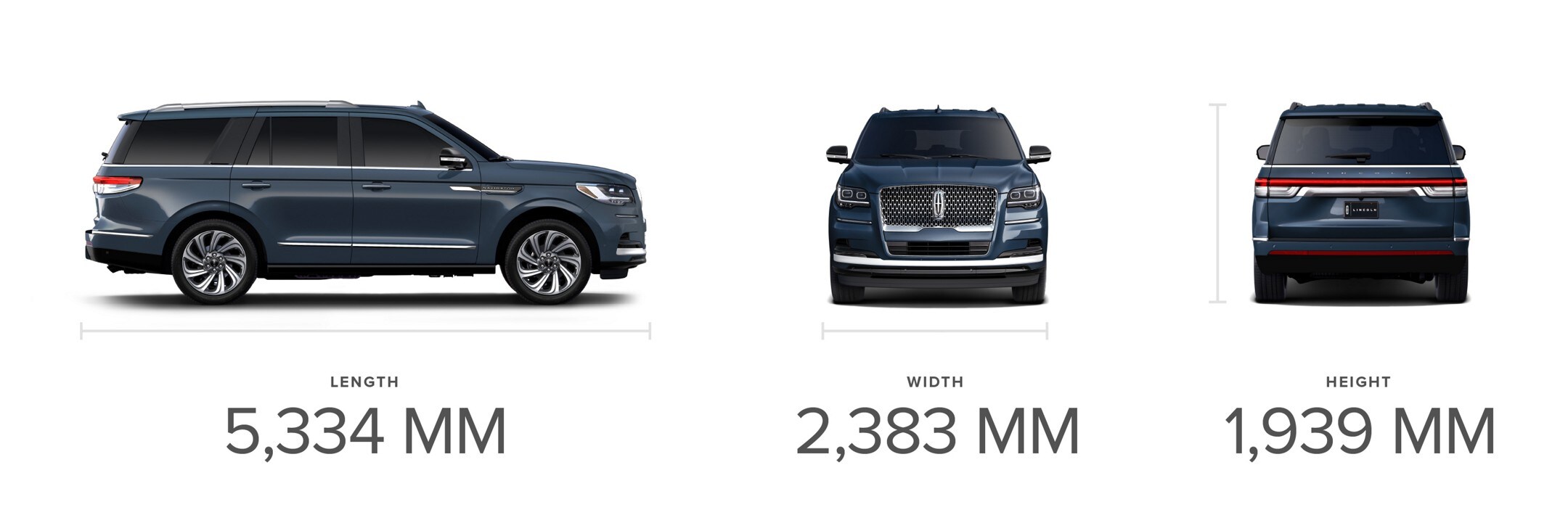

VEHICLE DIMENSIONS

NAVIGATOR RESERVE HIGHLIGHTS

A wide shot of the 2021 Lincoln Navigator interior bathed in soft inviting light shows off the spacious design of the second and third row seating

PERFECT POSITION SEATING

The 24-way Perfect Position front seats put you in control of your own comfort with their wide range of movement and standard heating and ventilation.

The front cabin of the 2021 Lincoln Navigator is shown in the slate interior colour

DRIVER ASSIST TECHNOLOGY

Enjoy additional driver assist technology including Adaptive Cruise Control with Stop and Go, Forward and Revere Sensing Systems, Enhanced Active Park Assist and Phone as a Key.

A silver second row door speaker and tweeter feature a radial sunburst design creating lines that imitate the expansive power of the sound system

REVEL® AUDIO SYSTEM

The standard Revel and available Revel Ultima Audio System combine form and function to reproduce a live-music experience in the comfort of your vehicle.

Specifications

Highlights

Switch to Imperial Units Switch to Metric Units

Fuel Consumption and Engine highlights	Navigator 4x4	Navigator L 4x4
Engine Type	3.5L Twin-Turbocharged V6	3.5L Twin-Turbocharged V6
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods.	15.0 L/100 km city/11.5 L/100 km hwy/ 13.5 L/100 km combined*	15.0 L/100 km city/11.5 L/100 km hwy/ 13.5 L/100 km combined*

Fuel Consumption and Engine highlights	Navigator 4x4	Navigator L 4x4
Engine Type	3.5L Twin-Turbocharged V6	3.5L Twin-Turbocharged V6
Fuel Consumption *Fuel consumption ratings based on Government of Canada approved test methods.	19 city/ 25 hwy/ 21 combined (mpg-lmp)*	19 city/ 25 hwy/ 21 combined (mpg-lmp)*

Vehicle Highlights

Switch to Imperial Units Switch to Metric Units

	Navigator 4x4	Navigator L 4x4
Max Seating Capacity	7/8	7/8
Drive Type	Four Wheel Drive (4x4)	Four Wheel Drive (4x4)
Transmissions	10-Speed SelectShift^® Automatic Transmission	10-Speed SelectShift^® Automatic Transmission
Wheelbase	3112 mm	3342 mm
Maximum Towing Capacity	3,765 kg	3,674 kg
Wheel Availability	22" 12-Spoke Bright-Machined Aluminum Wheel with Dark Tarnish Painted Pockets	22" 12-Spoke Bright-Machined Aluminum Wheel with Dark Tarnish Painted Pockets
	22" 16-Spoke Bright-Machined Aluminum wheel with Dark Tarnish Painted Pockets	22" 16-Spoke Bright-Machined Aluminum wheel with Dark Tarnish Painted Pockets
	22" Black Aluminum	22" Black Aluminum
Warranty	Basic: 48 months/80,000 km Corrosion: 5 years/unlimited distance Powertrain: 6 years/110,000 km Safety Restraint: 5 years/100,000 km Roadside Assistance: 6 years/110,000 km	Basic: 48 months/80,000 km Corrosion: 5 years/unlimited distance Powertrain: 6 years/110,000 km Safety Restraint: 5 years/100,000 km Roadside Assistance: 6 years/110,000 km

	Navigator 4x4	Navigator L 4x4
Max Seating Capacity	7/8	7/8
Drive Type	Four Wheel Drive (4x4)	Four Wheel Drive (4x4)
Transmissions	10-Speed SelectShift® Automatic Transmission	10-Speed SelectShift® Automatic Transmission
Wheelbase	122.5 in	131.6 in
Maximum Towing Capacity	8,300 lbs.	8,100 lbs.
Wheel Availability	22" 12-Spoke Bright-Machined Aluminum Wheel with Dark Tarnish Painted Pockets	22" 12-Spoke Bright-Machined Aluminum Wheel with Dark Tarnish Painted Pockets
	22" 16-Spoke Bright-Machined Aluminum wheel with Dark Tarnish Painted Pockets	22" 16-Spoke Bright-Machined Aluminum wheel with Dark Tarnish Painted Pockets
	22" Black Aluminum	22" Black Aluminum
Warranty	Basic: 48 months/50,000 miles Corrosion: 5 years/unlimited distance Powertrain: 6 years/70,000 miles Safety Restraint: 5 years/60,000 miles Roadside Assistance: 6 years/70,000 miles	Basic: 48 months/50,000 miles Corrosion: 5 years/unlimited distance Powertrain: 6 years/70,000 miles Safety Restraint: 5 years/60,000 miles Roadside Assistance: 6 years/70,000 miles

Exterior

Switch to Imperial Units Switch to Metric Units

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(mm)	(mm)
Wheelbase	3,112	3,342
Length	5,334	5,636
Height	1,939	1,933
Body Width-Maximum	2,030	2,030
Vehicle Width - Including Outside Mirrors	2,383	2,383
Vehicle Width - with Mirrors Folded	2,124	2,124
Front Track	1,716	1,716
Rear Track	1,708	1,708
Front Overhang	971	971
Rear Overhang	1,251	1,323
Approach Angle [deg]	22.2	22.4
Departure Angle [deg]	21.9	20.7
Ramp Breakover Angle [deg]	21.1	19.8
Minimum Running Ground Clearance	244	245

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(in)	(in)
Wheelbase	122.5	131.6
Length	210.0	221.9
Height	76.3	76.1
Body Width-Maximum	79.9	79.9
Vehicle Width - Including Outside Mirrors	93.8	93.8
Vehicle Width - with Mirrors Folded	83.6	83.6
Front Track	67.6	67.6
Rear Track	67.2	67.2
Front Overhang	38.2	38.2
Rear Overhang	49.3	52.1
Approach Angle [deg]	22.2	22.4
Departure Angle [deg]	21.9	20.7
Ramp Breakover Angle [deg]	21.1	19.8
Minimum Running Ground Clearance	9.6	9.6

Interior

Switch to Imperial Units Switch to Metric Units

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(mm)	(mm)
Maximum Head Room – 1st-Row	1,062	1,062
Head Room - 2nd-Row	1,015	1,015
Head Room - 3rd-Row	948	950
Maximum Leg Room - 1st-Row	1,115	1,115
Leg Room - 2nd-Row	1,045	1,045
Leg Room - 2nd-Row (Seat Full Rearward)	1,074	1,074
Leg Room - 3rd-Row	917	917
Leg Room - 3rd-Row (2nd-Row Seat Full Forward)	1,038	1,038
Hip Room - 1st-Row	1,571	1,571
Hip Room - 2nd-Row	1,565	1,565
Hip Room - 3rd-Row	1,305	1,305
Shoulder Room - 1st-Row	1,656	1,656
Shoulder Room - 2nd-Row	1,653	1,653
Shoulder Room - 3rd-Row	1,630	1,634

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(in)	(in)
Maximum Head Room – 1st-Row	41.8	41.8
Head Room - 2nd-Row	40.0	40.0
Head Room - 3rd-Row	37.3	37.4
Maximum Leg Room - 1st-Row	43.9	43.9
Leg Room - 2nd-Row	41.1	41.1
Leg Room - 2nd-Row (Seat Full Rearward)	42.3	42.3
Leg Room - 3rd-Row	36.1	36.1
Leg Room - 3rd-Row (2nd-Row Seat Full Forward)	40.9	40.9
Hip Room - 1st-Row	61.9	61.9
Hip Room - 2nd-Row	61.6	61.6
Hip Room - 3rd-Row	51.4	51.4
Shoulder Room - 1st-Row	65.2	65.2
Shoulder Room - 2nd-Row	65.1	65.1
Shoulder Room - 3rd-Row	64.2	64.3

Capacities

Switch to Imperial Units Switch to Metric Units

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(L)	(L)
Passenger Volume [cu.-ft./ L]	4,869	4,873
Cargo Volume Behind 1st-Row [cu.-ft./ L]	2,925	3,403
Cargo Volume Behind 2nd-Row [cu.-ft / L]	1,627	2,077
Cargo Volume Behind 2nd-row - 2nd-Row Seat Full Forward [cu.-ft./ L]	1,800	2,254
Cargo Volume Behind 3rd-Row [cu.-ft./ L]	546	972
Cargo Volume Behind 3rd-Row - 3rd-Row Seat Full Upright [cu.-ft./ L]	593	1,019
Fuel:	Navigator 4x4 (litre)	Navigator L 4x4 (litre)
Maximum Fuel Capacity	95 L	114 L

	Navigator SWB 4x4	Navigator L (LWB) 4x4
	(cu.-ft.)	(cu.-ft.)
Passenger Volume [cu.-ft./ L]	172.0	172.1
Cargo Volume Behind 1st-Row [cu.-ft./ L]	103.3	120.2
Cargo Volume Behind 2nd-Row [cu.-ft / L]	57.5	73.3
Cargo Volume Behind 2nd-row - 2nd-Row Seat Full Forward [cu.-ft./ L]	63.6	79.6
Cargo Volume Behind 3rd-Row [cu.-ft./ L]	19.3	34.3
Cargo Volume Behind 3rd-Row - 3rd-Row Seat Full Upright [cu.-ft./ L]	20.9	36.0
Fuel:	Navigator 4x4 (gal)	Navigator L 4x4 (gal)
Maximum Fuel Capacity	23.6 gal	27.8 gal

Engine

Switch to Imperial Units Switch to Metric Units

Engine Specifications	Navigator 4x4	Navigator L 4x4
Engine type	3.5L Twin-Turbocharged V6	3.5L Twin-Turbocharged V6
Transmission type	10-Speed SelectShift® Automatic Transmission	10-Speed SelectShift® Automatic Transmission
Horsepower (SAE net @ rpm)	450 @ 5500	450 @ 5500
Torque (lb. Ft SAE net @ rpm)	510 @ 3000	510 @ 3000
Compression Ratio	10.0:1	10.0:1
Fuel Consumption *Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary.	15.0 L/100 km city/11.5 L/100 km hwy/ 13.5 L/100 km combined*	15.0 L/100 km city/11.5 L/100 km hwy/ 13.5 L/100 km combined*
Fuel Delivery	Direct injection	Direct injection
Exhaust	Dual	Dual

Engine Specifications	Navigator 4x4	Navigator L 4x4
Engine type	3.5L Twin-Turbocharged V6	3.5L Twin-Turbocharged V6
Transmission type	10-Speed SelectShift® Automatic Transmission	10-Speed SelectShift® Automatic Transmission
Horsepower (SAE net @ rpm)	450 @ 5500	450 @ 5500
Torque (lb. Ft SAE net @ rpm)	510 @ 3000	510 @ 3000
Compression Ratio	10.0:1	10.0:1
Fuel Consumption *Fuel consumption ratings based on Transport Canada approved test methods. Actual fuel consumption will vary.	19 city/ 25 hwy/ 21 combined (mpg-lmp)*	19 city/ 25 hwy/ 21 combined (mpg-lmp)*
Fuel Delivery	Direct injection	Direct injection
Exhaust	Dual	Dual

Chassis

Switch to Imperial Units Switch to Metric Units

	Navigator 4x4	Navigator L 4x4
Chassis Specifications
Front Suspension	Independent Short-and Long-Arm (SLA) with coil-over shocks and stabilizer bar	Independent Short-and Long-Arm (SLA) with coil-over shocks and stabilizer bar
Rear Suspension	Independent Multi-Link with coil-over shocks and stabilizer bar	Independent Multi-Link with coil-over shocks and stabilizer bar
Front and rear brakes	Power Four-Wheel Disc Anti-lock Brake System (ABS)	Power Four-Wheel Disc Anti-lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)	Electric Power-Assisted Steering (EPAS)

	Navigator 4x4	Navigator L 4x4
Chassis Specifications
Front Suspension	Independent Short-and Long-Arm (SLA) with coil-over shocks and stabilizer bar	Independent Short-and Long-Arm (SLA) with coil-over shocks and stabilizer bar
Rear Suspension	Independent Multi-Link with coil-over shocks and stabilizer bar	Independent Multi-Link with coil-over shocks and stabilizer bar
Front and rear brakes	Power Four-Wheel Disc Anti-lock Brake System (ABS)	Power Four-Wheel Disc Anti-lock Brake System (ABS)
Steering	Electric Power-Assisted Steering (EPAS)	Electric Power-Assisted Steering (EPAS)

Towing

Switch to Imperial Units Switch to Metric Units

	Navigator 4x4	Navigator L 4x4
Maximum towing capacity	3,765 kg*	3,674 kg*
	*When properly equipped with optional Heavy Duty Trailer Tow Package.	*When properly equipped with optional Heavy Duty Trailer Tow Package.

	Navigator 4x4	Navigator L 4x4
Maximum towing capacity	8,300 lbs.*	8,100 lbs.*
	*When properly equipped with optional Heavy Duty Trailer Tow Package.	*When properly equipped with optional Heavy Duty Trailer Tow Package.

Exterior Features

Appearance

Standard

Bright Roof-Rack Side Rails
Illuminated Power-Deployable Running Boards Open image overlay for Illuminated Power-Deployable Running Boards
Doors/Handles - Body Colour Bezel with Chrome Insert
Bright Belt Moulding
Dual Exhaust System
Daytime Running Lamps - LED
Fog Lamps - LED
Lincoln Signature Lighting - LED
Headlamps - Jeweled LED Open image overlay for Headlamps - Jeweled LED
Auto Lamp (Automatic on/off Headlamps)
Tow Hooks
Power Folding, Heated Mirrors with Led Turn Signals, and Driver-Side Auto Dimming Feature Open image overlay for Power Folding, Heated Mirrors with Led Turn Signals, and Driver-Side Auto Dimming Feature
Lincoln Signature Grille with Bright Chrome Surround
Active Grille Shutters
Tail Lamps and Backup Lamps- LED
1st- and 2nd-Row Illuminated Belt Buckles
Illuminated Lincoln Star Open image overlay for Illuminated Lincoln Star
Lincoln Embrace Open image overlay for Lincoln Embrace

Protection

Standard

Easy Fuel® Capless Fuel Filler

Windows & Glass

Standard

Windows - Solar-tinted Front and Privacy for Rear Door, Quarter and Liftgate Glass
Panoramic Vista Roof® Open image overlay for Panoramic Vista Roof®

Interior Features

Climate

Standard

Tri-Zone Electronic Automatic Temperature Control with Rear Auxiliary Climate Controls and Vents

Comfort and Convenience

Standard

Reverse Sensing System
Genuine Wood Trim: Centre Console and Door Panels Open image overlay for Genuine Wood Trim: Centre Console and Door Panels
Heated, Leather-Wrapped Steering Wheel with Audio, and Cruise Controls
Coat Hooks- (2) 2nd-Row, (2) 3rd-Row
Carpeted 1st- and 2nd-Row floor mats
Cup/ Bottle Holders
Instrument Cluster- 12" Configurable LCD Display
Ambient Lighting
Blind Spot Detection with Cross-Traffic Alert and Trailer Coverage
Reading Lights
Frameless, Auto-Dimming Rearview Mirror
Power-Adjustable Brake and Accelerator Pedals
Power Tilt/Telescoping Steering Column with Memory
Front Sun Visors with Illuminated Vanity Mirrors
Power Windows with One-Touch-Up/Down and Global Open/Close Windows Feature
Fixed Rear Quarter Glass
Hands-Free Power Liftgate Open image overlay for Hands-Free Power Liftgate
Power Door-Locks with Autolock
Universal Garage Door Opener
Rear Window Defroster with Washer and Intermittent Wiper
Overhead Console with Sunglasses Holder and Conversation Mirror
Front Console with Winged Armrests and Storage
Glove Compartment - Lockable
Remote Start System
Adaptive Cruise Control with Stop-and-Go
Illuminated Front Door-Sill Scuff Plates
Piano-Key Shifter Open image overlay for Piano-Key Shifter
Intelligent Access with Push-Button Start
Active Noise Control
110V/150W AC power outlet
Powerpoints- (4) 12V, (6) Fast Charging USB Open image overlay for Powerpoints- (4) 12V, (6) Fast Charging USB
Rain-Sensing Front Wipers
Head-Up Display Open image overlay for Head-Up Display
Enhanced Active Park Assist Open image overlay for Enhanced Active Park Assist
Wireless Charging Pad Open image overlay for Wireless Charging Pad
Lane Keeping System
Hill Descent Control™
Forward Sensing System
Personal Profiles Open image overlay for Personal Profiles
Lincoln Connect™ Open image overlay for Lincoln Connect™
Lincoln Way™ APP Open image overlay for Lincoln Way™ APP
Lincoln Co-Pilot360™ Open image overlay for Lincoln Co-Pilot360™
Auto High Beam Headlamps
Pre-Collision Assist with Automatic Emergency Braking
Phone As A Key Open image overlay for Phone As A Key

Entertainment Systems

Standard

SYNC® 3 Open image overlay for SYNC® 3
10" LCD Capacitive Touchscreen in Centre Stack with Swipe Capability Open image overlay for 10" LCD Capacitive Touchscreen in Centre Stack with Swipe Capability
Voice-Activated Navigation System with Pinch-to-Zoom
Revel® Audio System with HD Radio™ Technology and 14 Speakers
SiriusXM®

Optional

Revel Ultima® Audio System with HD Radio Technology and 20 Speakers Open image overlay for Revel Ultima® Audio System with HD Radio Technology and 20 Speakers

Interior Accessories

Optional

All-Weather Floor Liners - 1st- and 2nd-Rows

Seating

Standard

2nd-Row PowerFold® Heated Captain Chairs - 40/Pass-Through/40 Seating
3rd-Row PowerFold® Split Bench Seat with Power Recline
Perfect Position Front Seats with 24-way Adjustability and Power Thigh Extenders and Head Restraints
Heated and Ventilated Front Seats
Driver and Front Passenger Seat Memory Feature

Optional

2nd-Row Full Console with Rear Seat Command and Control including 4.2" LCD and Multimedia Audio Controls
Perfect Position Front Seats with 30-way Adjustability and Active Motion® Open image overlay for Perfect Position Front Seats with 30-way Adjustability and Active Motion®
2nd-Row Heated 40/20/40 Split Bench with PowerFold®

Packages

Power and Handling

Handling

Standard

AdvanceTrac® with RSC® (Roll Stability Control™)
Trailer Tow Prep Package
Lincoln Drive Modes Open image overlay for Lincoln Drive Modes
Auto Hold Open image overlay for Auto Hold
Electric Power-Assisted Steering (EPAS)
Adaptive Suspension Open image overlay for Adaptive Suspension

Optional

Heavy Duty Radiator
Pro-Trailer Backup Assist
Two-Speed Transfer Case
Trailer Brake Controller

Power

Standard

Twin-Turbocharged 3.5L V6 Engine Open image overlay for Twin-Turbocharged 3.5L V6 Engine
Axle- Non-Limited Slip 3.73 (1-speed transfer case)
10-Speed SelectShift^® Automatic Transmission with Paddle Activation Open image overlay for 10-Speed SelectShift^® Automatic Transmission with Paddle Activation
Battery - 78 Amp
Engine Block Heater
4x4 Four-Wheel Drive Open image overlay for 4x4 Four-Wheel Drive
Transmission Oil Cooler

Wheels & Tires

Standard

22" 12-Spoke Bright-Machined Aluminum Wheel with Dark Tarnish Painted Pockets
18" Steel Spare Wheel

Optional

22" 16-Spoke Bright-Machined Aluminum wheel with Dark Tarnish Painted Pockets
22" Black Aluminum

Safety

Standard

Four-Wheel Disc Anti-Lock Brake System (ABS)
Dual Stage Front Airbags Open image overlay for Dual Stage Front Airbags
Side Impact Airbags - 1st- and Outboard 2nd-Row Seats
Safety Canopy® with Roll Over Sensor
Belt-Minder® Open image overlay for Belt-Minder®
Child-safety Rear Door Locks
Front Crash Severity Sensor
LATCH (Lower Anchors and Tether Anchors for Children)
SOS Post-Crash Alert System™
Personal Safety System™
Individual Tire Pressure Monitoring System (excludes spare)
360-Degree Camera with Front Camera Wash Open image overlay for 360-Degree Camera with Front Camera Wash
Rear View Camera with Washer

Optional

Inflatable Rear Outboard Safety Belts

Security

Standard

SecuriCode™ Keyless Entry Keypad
Remote Keyless Entry System
Battery saver
Perimeter alarm
Enhanced Security - Intrusion and Inclination Sensors
MyKey®
Electric parking brake
SecuriLock® Passive Anti-Theft

Build & Price
Search Inventory
Find a Dealer

MORE SHOPPING TOOLS

PAYMENT TOOLS

MORE REASONS WHY

Register or sign in for a more personalized experience.

LINCOLN SERVICES

Welcome back, {firstName}.

LINCOLN SERVICES

2021 Lincoln® Navigator Reserve | Detailed Specifications

2021 Navigator Specifications & Models

NAVIGATOR RESERVE

RESERVE 201A

RESERVE 208A MONOCHROMATIC PACKAGE

VEHICLE DIMENSIONS

NAVIGATOR RESERVE HIGHLIGHTS

PERFECT POSITION SEATING

DRIVER ASSIST TECHNOLOGY

REVEL® AUDIO SYSTEM

Specifications

Highlights

Vehicle Highlights

Exterior

Interior

Capacities

Engine

Chassis

Towing

Exterior Features

Appearance

Standard

Protection

Standard

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Entertainment Systems

Standard

Optional

Interior Accessories

Optional

Seating

Standard

Optional

Packages

Free Standing Packages & Options

Optional

Packages

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Optional

Security

Standard

2021 Navigator
Specifications & Models
